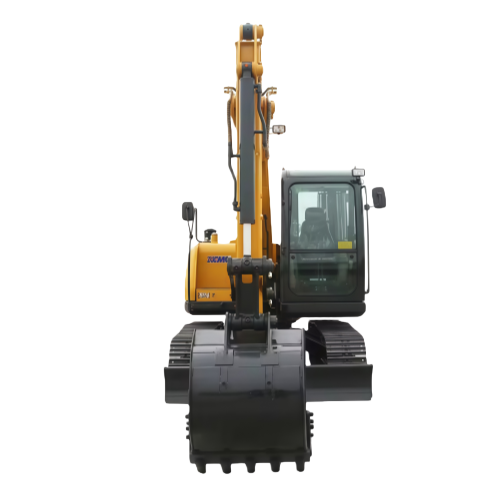

XE80D Mini Excavator

Product Feature

1. More energy-saving and environmentally friendly.
(1) It uses the Yanmar naturally aspirated engine widely used in the industry, with small displacement, low fuel consumption, and high low-speed torque, which perfectly meets the characteristics of excavator operating conditions. The engine uses direct injection technology and has good oil adaptability. The mechanical speed regulation has been upgraded to electronic speed regulation, and the speed control is more stable, which not only reduces fuel consumption but also effectively reduces the “black smoke” of the engine.
(2) The electronically controlled main pump is used for the first time in the industry with the same tonnage. According to the maximum output torque of the engine at different speeds, the maximum load torque of the main pump is controlled, which truly achieves a perfect match between load and power output and greatly improves the utilization rate of engine energy.
(3) The hydraulic control system uses an advanced load-sensitive control system with low energy consumption, fast response speed, precise control, and small impact. According to the load feedback signal, the output flow of the variable piston pump is controlled to always adapt to the valve core opening requirements of the multi-way valve, without excess flow loss, and to achieve load-independent flow distribution, which is more flexible and easier to achieve on flat ground.
2. More efficient returns.
 (1) The bucket capacity of the new generation XE80D is increased by 10% to 0.33m3 compared to the C series products, which improves the efficiency of earthwork operations.
(2) The larger fuel tank capacity, combined with ultra-low fuel consumption, extends the continuous operation time of the entire machine.
(3) Based on the improved and upgraded hydraulic system, the hydraulic oil tank capacity has been re-optimized and reduced by 11% compared to the C series products, significantly reducing maintenance costs.
3. More reliable and durable.
(1) New and optimized working device: The parts with high stress on the boom are locally strengthened, and the bucket arm is made of a molded “U-shaped plate” welded with the upper cover plate, which has a longer service life. The standard new bucket makes unloading faster.
(2) High-reliability slewing platform: The main beam of the slewing platform adopts an “I-beam” structure, and the side beam adopts a “D-section” structure, which has higher overall reliability.
(3) Reinforced chassis structure: Adopting X-frame chassis structure, the lower frame is reinforced with ribs to form a large cross-section box with good load-bearing performance. The weight of the vehicle can be evenly applied to the track beam, reducing the local stress concentration of the track beam. Adopting international standard reinforced track, it is more reliable to use and easier to maintain.
(4) New air intake pre-filter can effectively filter large particles of impurities from entering the air filter, extending the service life of the air filter.
(5) Equipped with a large Euro III high-precision fuel coarse filter with an oil-water separator, the filtering area is 1.5 times that of other models of the same tonnage.

4. More intelligent control – automatic idle, E/P mode control, engine fault diagnosis.
(1) When the control handle is in neutral, the engine will automatically reduce the engine speed, reducing unnecessary fuel consumption, noise and exhaust emissions. When the handle is moved again, the engine speed will resume.
(2) New mode control function (mode switching through the instrument F2 button):
E – Economic mode (low fuel consumption priority);
P – Efficiency mode (work volume priority).
Customers can choose the appropriate mode according to the actual needs of the working conditions to maximize their benefits.
(3) With an engine fault diagnosis function.
5. More comfortable and safe – new working light layout, certified cab, wide field of view.
(1) The new spacious and comfortable cab has a beautiful appearance. The rear pillar of the cab adopts a hidden design with a small blind spot, which improves the safety of operation.
(2) Standard high-power air conditioning with a reasonable layout of air-conditioning outlets. The air-conditioning outlet is set on the front window glass with a defrost function to eliminate fog and ensure safe driving.
(3) The cab has added ashtrays, cup holders, storage boxes, folders and backup power sockets to maximize comfort and convenience.
(4) The left door glass of the cab is designed as a sliding window type to facilitate communication between operators.
6. Convenient maintenance – centralized electrical box, rotary motor grease, oil and hydraulic oil drain ball valve, grease barrel and grease gun layout, tool box.
(1) A new centralized electrical box is added to place commonly used fuses and relays in the cab interior behind the seat, which is convenient for daily maintenance and beautiful.
(2) A new tool box is added to facilitate the placement of commonly used maintenance tools. The middle partition is arranged with rubber strips to prevent scratches on the arms when placing and taking tools. A limit pull rod is arranged to facilitate the lifting of the tool box cover when taking tools for maintenance.
(3) Drain and waterproof ball valves are added to the bottom of the fuel tank to facilitate hydraulic oil replacement and fuel tank cleaning.
(4) A one-way valve for draining the engine oil is added. The engine oil pan uses a one-way valve for draining the engine oil, which makes it easier to change the engine oil.
(5) A grease barrel seat and grease gun bracket are added and both are placed on the inside of the pump room, which is convenient for daily maintenance. They are placed in the pump room and locked on the left door to prevent loss.

Product Parameters
