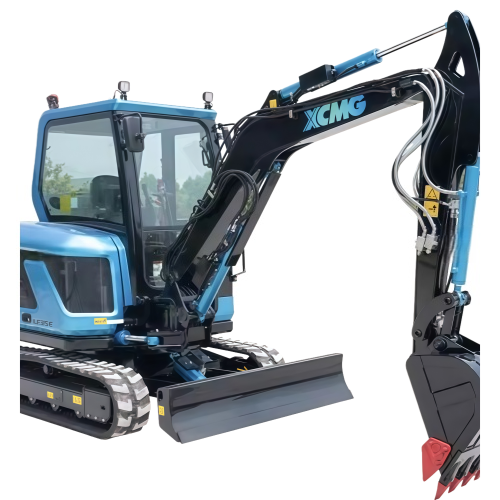

XE35U-E Mini Excavator with 0.12 m³ Bucket

Product Category: Mini Excavator
Bucket Capacity: 0.12 m³
Operating weight: 4300 kg
Brand: XCMG
Model: XE35U-E
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China

EMAIL

Product Feature

1.Compact Design
The XE35U-E excavator features a compact design, making it suitable for confined spaces and restricted work areas, offering easy operation and maneuverability.
2. Efficient Performance
The XE35U-E excavator is equipped with a powerful powertrain and advanced hydraulic system, delivering excellent performance and efficient operation.
3. Energy-Saving and Environmentally Friendly
The XE35U-E excavator utilizes a low-emission and low-noise engine, offering low fuel consumption and environmentally friendly features, meeting energy conservation and emission reduction requirements.
4. Comfortable Operating Environment
The XE35U-E excavator features an ergonomically designed cab with excellent visibility and a comfortable seat, providing a comfortable working environment for the operator.
5. Easy Maintenance
The XE35U-E excavator features an easy-to-service and easy-maintenance design, making routine maintenance and repairs easier for the operator, saving maintenance costs and time.
6. Versatile Configuration

The XE35U-E excavator can be configured with a variety of functional attachments, such as a log grapple and hydraulic hammer, to meet user needs, providing more construction options and flexibility.
7. High Reliability

The XCMG brand enjoys a high reputation and credibility in the excavator industry. The XE35U-E excavator utilizes high-quality components and advanced manufacturing processes, ensuring high reliability and durability.

Product Parameters


Specificaton
ModelXE35U-E
Operating Weight
4300 kg
Bucket Capacity
0.12 m³
Battery SystemBattery typeLithium iron phosphate
Battery pack compositionTwo standard C packs
Battery system energy70.18 kWh
Battery system capacity173 Ah
Battery system voltage405.72 V
Fast charge1h
Slow charge7h
Charge power11kW
ElectromotorTypeTypeRated/peak rotating speed
Rated working voltage310 V
Rated/peak torque87.5/120  Nm
Rated/peak power22/30 kW
Rated/peak rotating speed2400/3600  Rpm
Main PerformanceTravel speed(h/l)3.6/2.2 km/h
rotating speed8.5 r/min
Gradeability≤30°
Ground pressure38.5 kPa
Bucket digging force28.6 kN
Arm crowd force20.3kN
Appearance SizeOverall length5348 mm
Overall width1740 mm
Overall height2564 mm
Max. digging height5215 mm
Max. dumping height3760 mm
Max. digging depth3060 mm
Max. digging depth3060 mm
