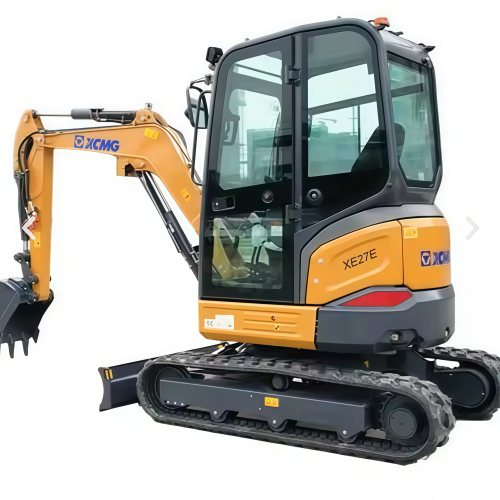

XE27E Mini Excavator

Operating Weight: 2780kg
Product Category: Mini Excavator
Brand: XCMG
Model: XE27E
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China

Product Feature

The Kubota Stage V D1105 engine, along with our load-sensing hydraulic system, provides efficiency and fuel economy.
This compact short-tail excavator is designed to perform a wide variety of tasks on the most challenging job sites. It does not matter whether it is in demolition, landscaping, earthmoving, or material handling. It gets the job done!
Boom Swing
The left and right boom swing angle is respectively 75° and 55°, it makes the XE27E
easy capable to realize complex tasks in difficult operation conditions like digging parallel to a wall in a narrow driveway.
Easy Service Access
The XE27E was developed with particular attention to ease of service access. With a single access point for the daily maintenance of all main components, fuel level gauge, and refueling through the lockable cap.

Product Parameters

Engine	Make/model	YANMAR/3TNV88F/EU Stage V
	Fuel/cooling	Diesel/Liquid, forced circulation
	No. of cylinders	3
	Piston displacement	1642 cm³
	Power output	18.2 kW (24.7 hp) / 2200 rpm (ISO 14396)
	Max torque	85.3-94.2 Nm/1320 rpm
	Bore × stroke	88 mm × 90 mm
	Alternator	12 V / 40 A
Digging forces (ISO 6015)	Digging force, standard arm (ISO 6015)	20.3 kN
	Digging force, long arm (ISO 6015)	18 kN
	Digging force, bucket (ISO 6015)	28.6 kN
Drive	Travel speed (low – high)	2.2-3.6 km/h
	Traction force	31.6 kN
	Gradeability	30°
Weight	Operating weight with canopy and bucket	4200kg
	Ground pressure with rubber tracks	0.36 kgf/cm²
	Transport mass (no attachment)	4125 kg
Working range	Max digging height	5000 mm
	Max dumping height	3600 mm
	Max digging depth	3060mm
	Maximum digging reach- std. arm	5300 mm
	Min swing radius	2170 mm
Dimensions	Overall length	4190 mm
	Overall width	1500 mm
	Overall height	2580 mm
