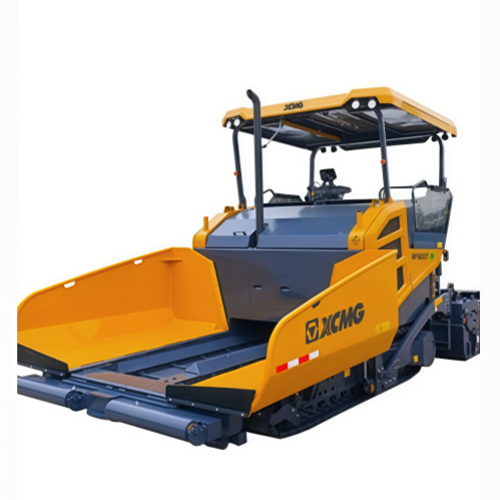

XCMG RP905TIV Paver

Product Feature

The XCMG RP905TIV multifunctional paver is a large-scale paving machine with excellent performance and reliable quality, widely used for paving various grades of highway surface materials.

I. Technical Features
Fully Hydraulic Drive and Microcomputer Control:

The fully hydraulic drive system with independent left and right drives ensures stable and flexible paving operations.

The microcomputer control system automatically controls the paving speed at a constant speed, improving operation accuracy and efficiency.

Advanced Paving Technology:

Equipped with ultrasonic material level sensing and an electronic automatic leveling system, it ensures the smoothness and density of the paved layer.

The vibrating compaction function further enhances paving results and improves road surface quality.

Powerful Powertrain:

Equipped with the proven and reliable Shanghai Diesel SC7H series diesel engine, it boasts a powerful 191.5 kW engine, ensuring stable operation in complex working conditions.

The three-in-one powerful composite radiator provides centralized forced heat removal, ensuring the machine’s long-term continuous operation in high-temperature environments.

Efficient Material Conveying and Distribution System:

The conveying and distribution system utilizes four independent fully hydraulic transmission systems with automatic material level control. Material distribution utilizes ultrasonic sensor control technology, and material conveying utilizes ultrasonic or material beat control technology to ensure a stable material level in the hopper and improve paving efficiency.

II. Parameter Configuration
Paving Width: Basic paving widths range from 3.0 to 6.0 meters, with a maximum width of 9.0 meters, meeting the paving needs of various road widths.

Paving Thickness: Maximum paving thickness reaches 500 mm, adapting to paving operations on various road thicknesses.

Theoretical Productivity: Up to 1,000 tons/hour, improving construction efficiency.

Other Features: Hopper capacity 15 tons, engine power 191.5 kW, electric screed heating, machine weight between 23.8 and 29 tons, and transport dimensions 7520 x 3000 x 3160 mm.

III. Applicable Operating Conditions and Service Support
Applicable Operating Conditions: The XCMG RP905TIV multifunctional paver is suitable for paving surface materials on highways of all grades, particularly excelling in municipal road construction with variable widths and high road quality requirements.

Service Support: XCMG Group provides comprehensive service support, including technical consultation, maintenance, and spare parts supply, to ensure the normal operation and long-term effectiveness of the equipment.

IV. Overall Evaluation
The XCMG RP905TIV multifunctional paver occupies a prominent position in the paver market with its reliable quality, excellent operating performance, and high cost-effectiveness. Utilizing the world’s most advanced technology, this machine offers excellent paving stability, uniform material feeding and distribution, high pre-compaction density, excellent flatness, comfortable operation, easy maintenance, and energy-saving and environmentally friendly features. Furthermore, the comprehensive service support provided by XCMG Group further enhances the machine’s market competitiveness.

Product Parameters
