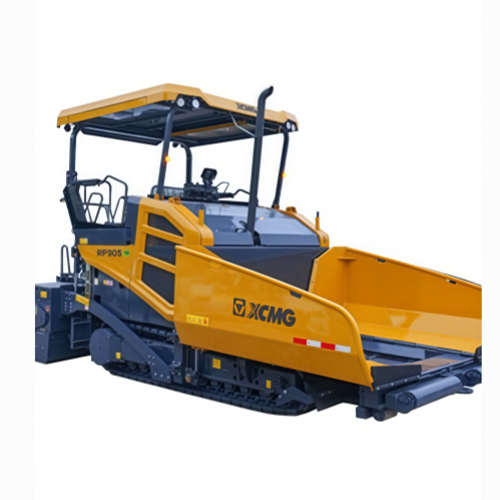

XCMG RP905IV Paver

Product Category: Paver
Brand: XCMG
Model: RP905IV
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

(1) Driving left and right independent drive, microcomputer control, paving speed adopts constant speed automatic control technology.

(2) It adopts mature and reliable Shangchai SC7H240 diesel engine with strong power of 177kW.

(3) It adopts three-in-one powerful composite radiator, which can ensure long time continuous work under the high temperature of 50℃ in the environment by forced centralized heat exhaust.

(4) The feeding and distributing materials adopt four sets of independent full-hydraulic system transmission, the material level is controlled automatically, the distributing material adopts ultrasonic sensing control technology, and the feeding material adopts ultrasonic or material clapping control technology, which ensures the material level in the trough is stable.

Product Parameters

Item	unit	RP905IV
Basic paving width	m	3～5.85
Maximum paving width	m	8.85
Maximum paving thickness	mm	500
Theoretical productivity	t/h	1000
Hopper capacity	t	15
Engine power	kW	177
Screed heating method	–	electrical heating
Weight	t	23.2～28
Transportation size	mm	7340x3000x3160
