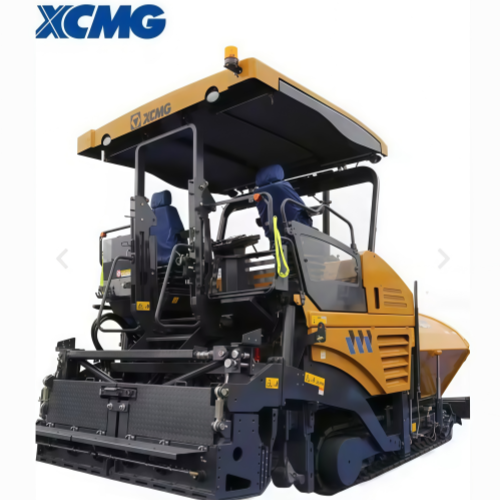

Product Category: Paver
Brand: XCMG
Model: RP753
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas
Drive left and right independent drive, microcomputer control, constant speed automatic control technology for paving speed, SC7H190 water-cooled supercharged engine of Shangchai (optional Dalian Deutz engine BF6M2012), using a three-in-one powerful composite radiator, left and right transmission, and material distribution Four sets of independent hydraulic system transmissions, high wear-resistant alloy material for the material-discharging blades, imported wear-resistant steel plate for the feeding floor and the screed bottom plate, and the left and right material-dispensing devices can be easily moved up and down to accommodate different paving thicknesses. A horizontal automatic leveling system ensures the flatness of the paving. Centralized lubrication system.
| Specification | Unit | RP403 |
| dimension | mm | 6545*2880*4000 |
| Weight | t | 18.7-25 |
| Driving speed | km/h | 3 |
| Basic pave width | m | 2.5-7.5 |
| Maximum pave width | m | 7.5 |
| Maximum layer thickness | mm | 350 |
| Maximum paving speed | m/min | 20 |
| Hopper capacity | t | 14 |
| Maximum laydown rate | t/h | 600 |
| Rate power | kw/rpm | 140/2000 |
