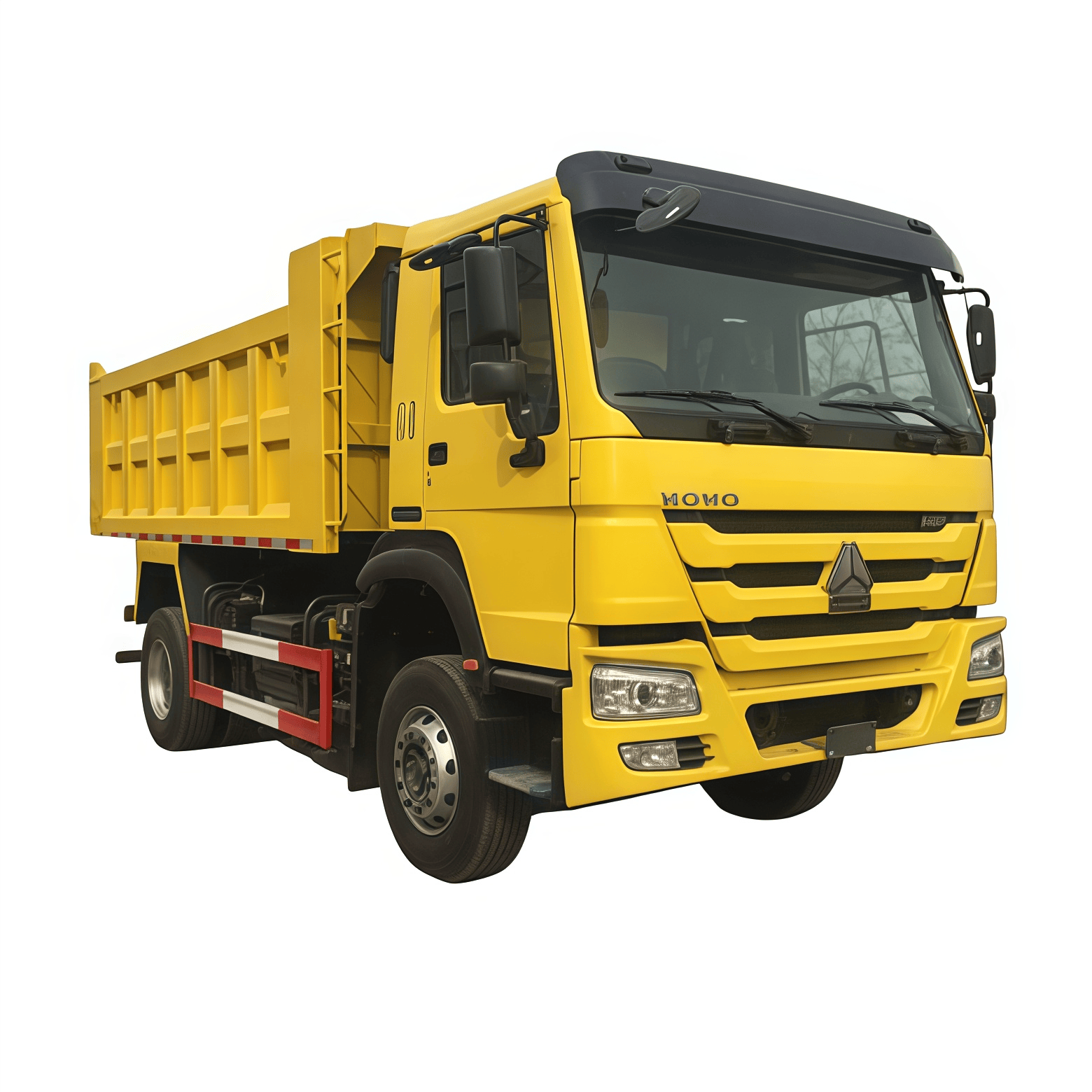

howo dump truck 6 wheeler

Dimension(Lx W xH)(unloaded)

6980x2490x3350     Left Hand Drive

Cargo body size (L*W*H, mm)

4200*2300*1400, bottom:8mm, side:6mm

Approaching angle/Departure angle(°)

19/27

Overhang(front/rear) (mm)

1500/1680

Wheel base (mm)

3800

Max speed(km/h)

75

Curb weight(kg)

7950

Engine

(Steyr technology, made in China)

Model

WD615.87

Fuel type

Diesel

Horse Power, max(kw/rpm)

290HP

Emission

EURO 2

Transmission

Model

HW19710

Steering system

Model

8118

Front axle

HF9

Rear axle

HC16

Color

optional

Tyre

12.00R20   Radial tire 7 pieces

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HW70 cab, (No bunk, with A/C,) all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
