Product Specification: sinotruk price in china

1. 1. Chinese famous heavy duty chassis brand in China---Sinotruk

2. 2. Low oil consumption with strong horse power 266-420hp
   3. Large load capacity 15-25ton
   4. LHD or RHD are optional
   5. Volume of Body:15-20cbm

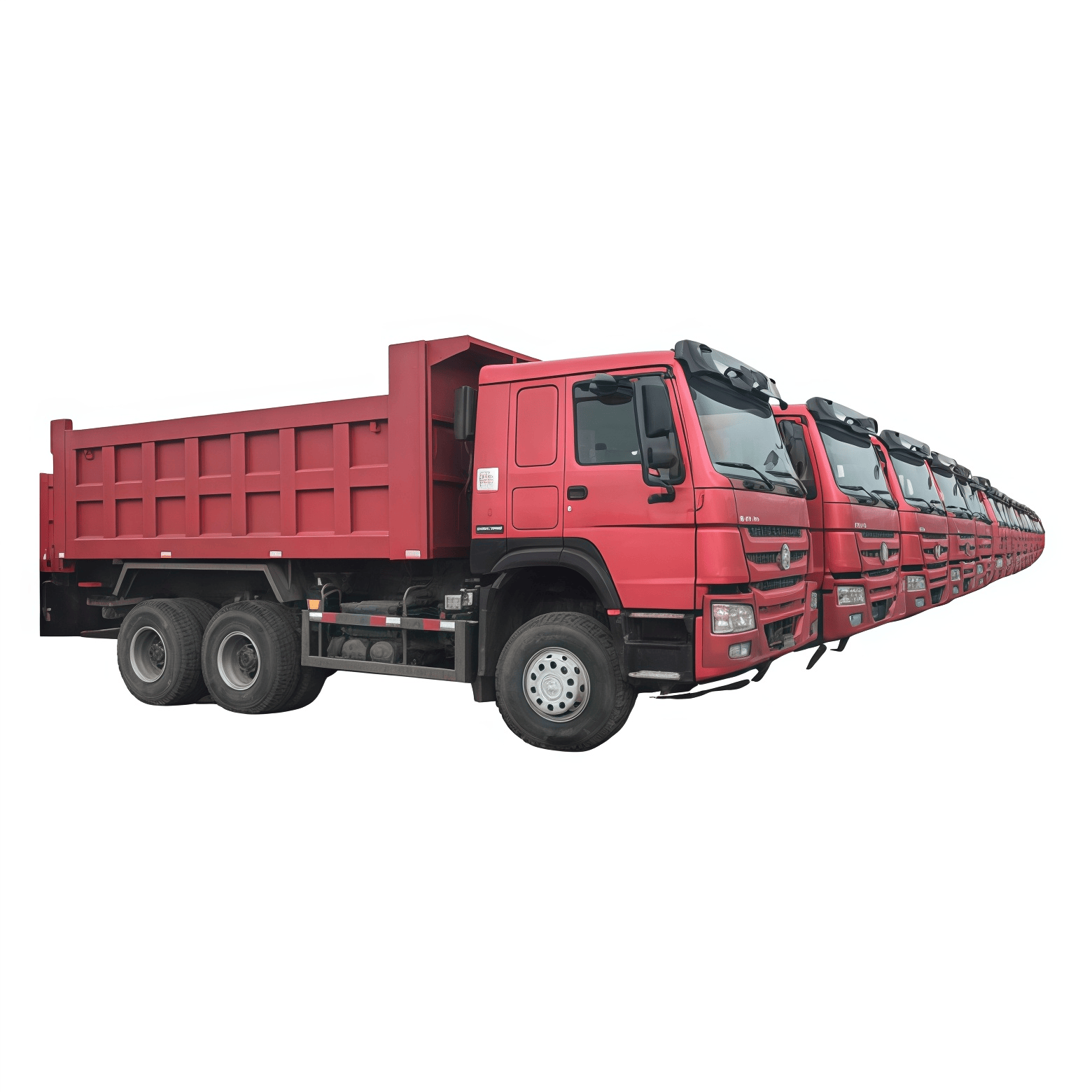

3. China howo 6x4 Dump Truck
   Cab	Model	HW76/HW79
   	Type	Extended cab/ High roof cab, single berth, up/down adjustable steering wheel, VDO instrument and control module, safety belt with double locking mechanism, exterior sun visor
   Engine	Model;	WD615 Engine/D10Engine/D12 Engine
   	Rate Power   kW/rpm	213/2200-308/2200
   	Horsepower	266HP-420HP
   	Displacement    L	9.726(WD615/D12)/11.596(D12)
   	Type	Inline 6 cylinders, supercharged intercooling, 2 valves and rear supercharger for D10/WD615 engine, 4 valves and central supercharger for D12engine
   Clutch		Φ430diaphragm spring clutch, hydraulic control air power assisted.
   Transmission		Sinotruk HW series 10/12 speed transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer.
   Front Axle		HF7,7T/HF9, 9t axle
   Rear Axle		AC16/HC16 double reduction, 16t axle
   Suspension		Front and rear leaf spring suspension + shock absorber + transverse stabilizer
   Steering system		ZF8118 steering gear, ZF steering oil pump
   Brake system		Service brake: dual-circuit pneumatic brake; Parking brake: energy storage spring cutoff brake; Auxiliary brake: engine exhaust brake. Standard engine ABS,  optional engine EVB and automatic slack adjuster
   Electrical system		Voltage:24V; Generator: 1540W; Starter: 24V, 7.5W; Battery: 12V/165Ah, 2 pieces
   Tyre		295/80R22.5, /315/80R22.5, /11.00-20/12.00-20/11.00R20/12.00R20 tyre brand optional
   Oil Tank Volume             L		300, 400 optional
   Curb Weight                kg		12000~12360
   Load Capacity              kg		10t -50t
   Wheel Base               mm		(3225~4625)+1350
   Front/Rear Overhang        mm		1500/(1559~2475)
   Min. Ground Clearance      mm		314
   Max Speed               km/h		78
   Carriage box Volume		11.5~25
   Lifting System		T, F
   Optional		All wheel(6*6 dump truck)

JINAN CHASING VEHICLE CO., LTD was established in 2004. It is a company inte-grating product research and development, production, trade, and mainly engaged in the manufacture of semi trailers, trailers, trailer accessories, and used truck sales.

The company covers an area of 150,000 square meters. It is a designated special vehicle manufacturer approved by the Ministry of Industry and Information Technology of China. It is also one of the earliest domestic companies to obtain China's well-known trademarks, ISO, CCC, and compulsory product certification.
