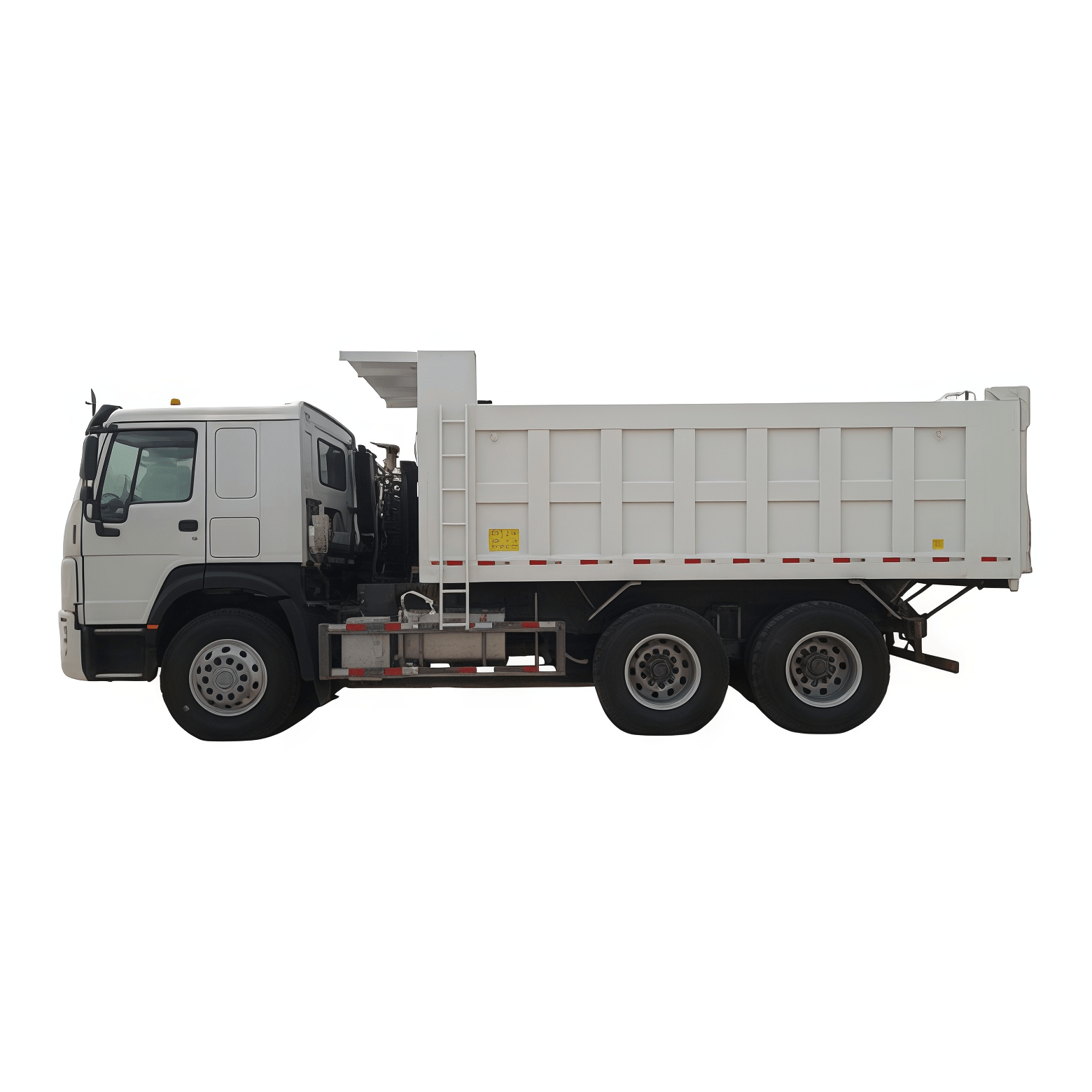

6x4 371hp howo truck

Product Specification: 6x4 371hp howo truck

1. Model	6x4 dump truck                                                                                   Based on Steyr technology
   Cabin	Four point s suspension Cabin with spring and air shock absorber, Adjustable steering, Sun cover, Safety belt, short cabin without sleeper
   Engine	Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
   Model:	WD615.47	STEYR technology(CNHTC)
   	Engine power	371HP/273kW
   	Displacement(L):	9.726liter (Euro 2 standard)
   	Max torque:	1450NM@1100-1600rpm
   	Bore/stoke:	126mm/130mm
   	Fuel consumption	198g/kW.h
   Gear box	CNHTC	Max torque:1900NM
   	Model:	HW19710
   	Speed:	10speed, 2reverse
   Axle(front/rear)
   Front axle	HF9 STEYR technology front steering axle
   Tandem	HC16 STEYR technology double reduction hub reductor driving axle
   Clutch	D430 diaphragm type clutch
   Brake	Service brake: Dual lines air brake
   	Parking brake: Spring-Power drum brake
   	Engine brake: Engine exhaust brake(EVB)
   Steering	Driver sit at the Left hand side (LHD)
   Electric  Equipment
   	Operating voltage:		24Vnegative grounded
   	Starter:		24V,5.4KW
   	Alternator		28V,758W
   	Battery voltage		12V/135Ah
   Frame	Strengthen steel frame, designed according to tough road condition.
   Tyre	10+1 spare tyre with rim
   	12.00R20 radial tyre
   Suspension system: Strengthen heavy duty Leaf spring type
   	Front/Rear		10/12
   Dump body:     type of body :
   Inside size of Body(mm): 5200x2300x1500, 8mm (floor)x6mm (side), made of high intensity steel
   Lifting type: Middle lifter T type hydraulic system
   Overall dimension(mm): 7934x2496x3450(Length x width x height)
   Wheelbase	3825+1350mm
   Track:
   	Front/Rear		2022/1830/130
   	Approach/Departure angle		19/23
   	Front /Rear overhang		1500/1870
   	Max speed		75km/h
   Kerb weight:	12450kg
