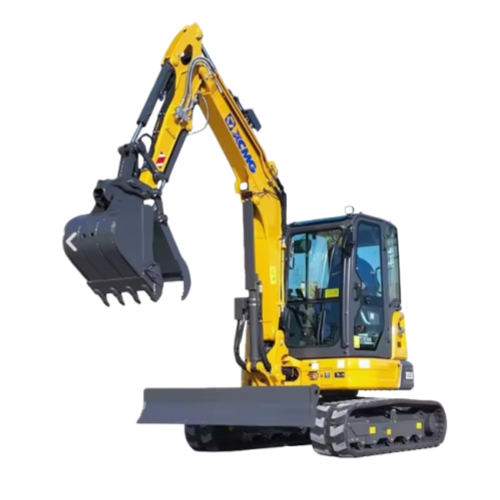

XE55U Mini Excavator

Product Category: Mini Excavator
Brand: XCMG
Model: XE55U
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China

Product Feature

1. Highly Flexible and Reliable
The excavator utilizes an advanced hydraulic system, offering fast and accurate response times for more flexible and precise operation.
2. Powerful Operating Performance
Equipped with a highly efficient engine and optimized hydraulic system, the XE55U excavator can easily handle various work scenarios and operating conditions, improving productivity.
3. Excellent Stability and Safety
The excavator utilizes a stable and reliable chassis structure and advanced hydraulic system, providing enhanced stability and safety, reducing shaking and bumps during operation and creating a more stable and safe operating environment.
4. Spacious and Comfortable Cab
The XE55U excavator’s spacious and comfortable cab features a comfortable seat and ergonomic design, reducing operator fatigue and improving operating efficiency.
5. Easy Repair and Maintenance
The XCMG XE55U excavator features a modular design for easy repair and maintenance, reducing repair and maintenance time and costs, and increasing machine availability and service life.

Product Parameters

Engine	Make/model	Kubota/V2403/Tier 4F
	No. of cylinders	4
	Piston displacement	2 434 cm³ (0.6 gal.)
	Max torque	159.8 N·m/1500 rpm
	Power output	30.7 kW (41.2 hp) (ISO 14396)
Digging forces	Digging force, standard arm	24.3 kN (5,462.9 lbf.)
	Digging force, bucket (ISO 6015)	44.5 kN (10,004 lbf.)
	Overall track length	2 490 mm (8’2″)
Swing mechanism	Boom swing, left	70°
	Boom swing, right	53°
	Slew rate	9.5 rpm
Drive	Travel speed (low – high)	2.8-4.6 km/h (1.7-2.9 mph)
	Traction force	52.8 kN (11,869.9 lbf.)
	Gradeability	70%/35°
Weight	Operating Weight With Cab	5.7 t (12,566 lb.)
Weight	Operating Weight With Canopy	5.6 t (12,346 lb.)
Working range	Maximum digging height – std arm	5 650 mm (18’6″)
	Maximum digging depth – std arm	3 640 mm (11’11”)
	Maximum dumping height – std arm	4 010 mm (13’2″)
	Minimum swing radius – std arm	2 430 mm (7’12”)
Dimensions	Overall length	5 340 mm (17’6″)
	Tail slew radius	1 040 mm (3’5″)
	Overall width	1 831 mm (6′)
	Overall height	2 555 mm (8’5″)
	Track shoe width	400 mm (16″)
	Tumbler length	1 990 mm (6’6″)
