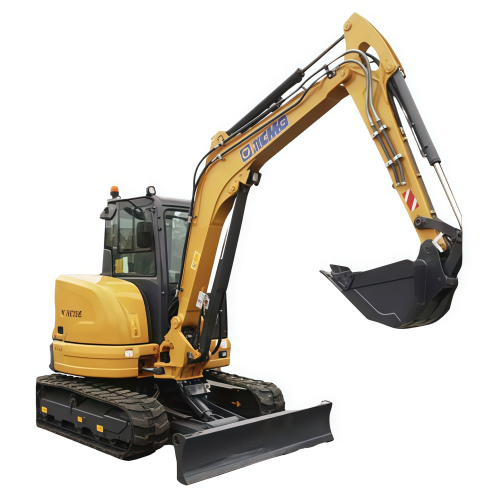

XE55E Mini Excavator with 0.16 m³ Bucket

Product Category: Mini Excavator
Bucket Capacity: 0.16 m³
Operating weight: 5700 kg
Brand: XCMG
Model: XE55E
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China

Product Feature

With the XE55E, your comfort comes first. The cab has a wide entrance door, which makes it more accessible.
The OPG/TOPS/ROPS(ISO 3471) cabin maximizes your safety.
Performance meets Efficiency
Designed to combine power and smoothness, the XE55E is ready to take on the challenge. This short-tail 5,7 ton machine can easily perform on your jobsites even in confined spaces. Its versatility is enhanced by two standard hydraulic circuits (AUX1 & AUX2) and precise oil flow control. High digging and lifting performance together with smooth driving performance make this XE55E complete.
In full control of your hydraulic system
The XE55E is standard equipped with proportional controlledAUX1 and AUX2 lines and has quick coupler lines standard available. From the monitor you can program multiple attachments.

Product Parameters

Item		Unit	Parameters
Model	Operating weight	Kg	5700
Model	Bucket capacity	m³	0.16
Engine	Model	–	Kubota V2403
	No. of cylinders	–	4
	Rated power	kw/rpm	31.2/2200
	Maximum torque/speed	N.m	159.8/1500
	Displacement	L	2.434
Main performance	Travel speed (H/L)	km/h	4.6/2.8
	Swing speed	r/min	9.5
	Gradeability	°	≤35
	Ground pressure	kPa	32.0
	Bucket digging force	kN	44.5
	Arm digging force	kN	29.2
	Maximum tractive force	kN	52.8
Hydraulic system	Rated flow of main pump	L/min	158.4
	Main safety valve pressure	Mpa	30
	Travel system pressure	Mpa	30
	Swing system pressure	Mpa	24
	Pilot system pressure	Mpa	3.5
Oil capacity	Fuel tank capacity	L	68
	Hydraulic tank capacity	L	46
	Engine oil capacity	L	9.5
Appearance size	A Overall length	mm	5340
	B Overall width	mm	1960
	C Overall height	mm	2555
	D Width of platform	mm	1830
	E Track length	mm	2490
	F Overall width of chassis	mm	1960
	G Track shoe width	mm	400
	H Wheel base of crawler	mm	1990
	I Track gauge	mm	1560
	J Counterweight clearance	mm	637
	K Minimum ground clearance	mm	315
	L Minimum tail swing radius	mm	1040
	M Track height	mm	550
Working range	A Maximum digging height	mm	5650
	B Maximum dumping height	mm	4010
	C Maximum digging depth	mm	3640
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	3200
	E Maximum vertical wall digging depth	mm	2690
	F Maximum digging radius	mm	6110
	G Minimum swing radius	mm	2430
Standard	Length of boom	mm	2850
Standard	Length of arm	mm	1570
