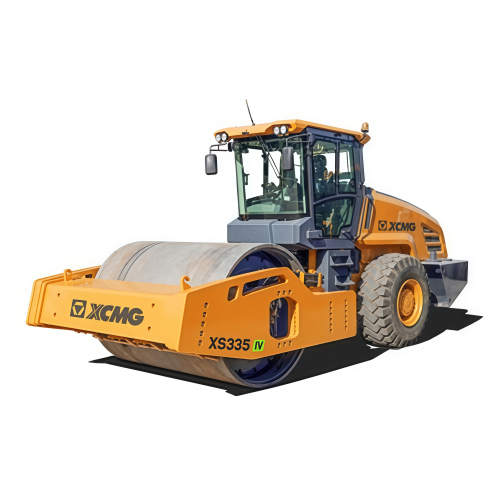

XCMG XS335IV Single drum roller

Product Feature

1. Equipped with a Weichai National IV water-cooled engine, it offers high power reserves, low fuel consumption, and low noise.

2. A single-pump, dual-motor closed-loop hydraulic drive system, consisting of an electronically controlled proportional pump, motor, and long-life reducer, provides full front and rear wheel drive, ensuring excellent driving performance and gradeability. Infinitely variable speeds within the set speed range ensure optimal operation under varying operating conditions.

3. Domestically produced heavy-duty drive axles offer strong load-bearing capacity and high reliability, ensuring the roller can achieve maximum traction under various operating conditions. Equipped with 20-ply rock-type tires, they are wear-resistant and particularly suitable for rock filling and compaction.

4. An electronically controlled closed-loop hydraulic system, consisting of an electronically controlled two-point variable displacement pump and a fixed displacement motor, delivers a maximum power output of 181 kW, making it suitable for rock filling and compaction.

5. The vibrating drum utilizes the same four-point support cylindrical vibrating chamber structure, long-life vibrating drum design, and “three-in-one” ultimate pressure equalization technology. It features a simple structure, high strength, and excellent rigidity. It offers dual-frequency and dual-amplitude functionality, high static linear pressure and excitation force, high operating efficiency, long vibration bearing life, and high reliability.

6. Based on ergonomic principles, the front steering and right-hand steering configuration are standard. The control armrest integrates a color display, a combination keypad, a CAN bus handle, an emergency stop button, and a one-touch engine start/stop switch. An elbow rest ensures comfortable operation. The air-suspension seat is adjustable for fore/aft, up/down, tilt, and stiffness, accommodating drivers of varying heights and weights.

Product Parameters
