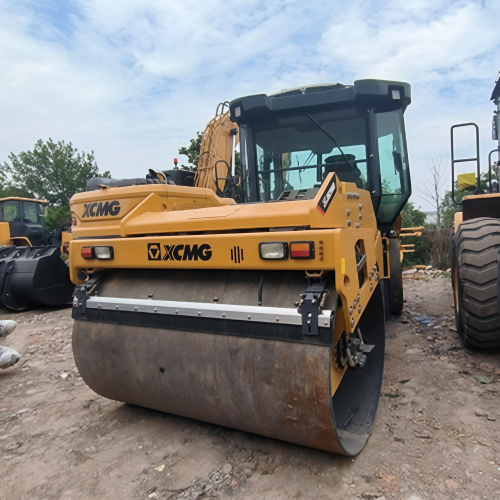

XCMG XD143 Road Roller

Product Category: Road Roller
Brand: XCMG
Model: XD143
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XD143 pneumatic roller is a large-tonnage tyre roller produced according to market requirements, which will take pneumatic tyres as working device for compacting paved materials. The tyre roller is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.

Product Parameters

Item	Unit	Parameter
Maximum operating weight	kg	26300
Water tank capacity	L	650L
Counterweight total	kg	10550
Engine manufacturer	–	SDEC
Engine Model	–	SC7H180.2G3
Rated Power	kW/rpm	132 /1800
Speed range（forward）
Speed（1）	km/h	0～6.5
Speed（2）	km/h	0～14
Speed（3）	km/h	–
Speed range（backward）
Speed（1）	km/h	–
Speed（2）	km/h	–
Max. gradeability	%	25
Track radius, out	mm	7620
Ground clearance	mm	300
Wheel base	mm	3840
Steering angle	°	35°
Braking distance	m	＜4.7
Working width	mm	2360
Tire numbers	–	Front 4 /Rear 5
Tire overlap	mm	65
Ground pressure	kPa	200～470
tyre size	–	13/80-20
Number of tire layers	–	16
tyre presure	kPa	600～650
Overall dimensions	mm	4925×2530×3400
