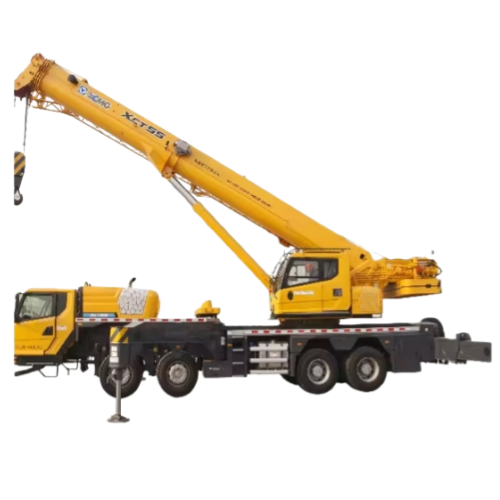

XCMG XCT55L5 Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: XCT55L5
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XCMG official XCT55L5 55 ton new hydraulic pickup truck crane for sale

XCT55L5 Truck crane is widely used for the lifting operations in general engineering projects,such as construction site, urban renewal, communication and transportation, ports, bridge,oilfields and mine, and complex working environments.
XCT55L5 is experts of efficiency,create wealth pioneer.New energy-saving hydraulic system, operating fuel consumption lower, fretting better. Operating conditions are better than the average 15% of competitors, fretting and ride to improve 20%, to meet the needs of users precise lifting.
5-section boom of 44.5 m with U-type profile is adopted; the max. lifting load is 55 t; the max. lifting height is 60.3 m; the max. working radius is 44.5m; The performance takes the lead comprehensively.
Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the gradeability is 45%.

Product Parameters

Dimension	Unit	XCT55L5
Overall length	mm	13980
Overall width	mm	2550
Overall height	mm	3610
Total weight in travel	kg	44000
Engine model		MC11.36-40/SC10E340Q4
Engine rated power	kW/(r/min)	268/1900 251/1900
Engine rated torque	N.m/(r/min)	1800/(1000~1400) 1550/1300
Max. travel speed	km/h	90
Min. turning diameter	m	24
Min. ground clearance	mm	303.5
Departure angle	°	13
Max. grade ability	%	45
Fuel consumption for 100km	L	35
Max. rated total lifting capacity	t	55
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.845
Max. lifting torque	kN.m	2033
Base boom	m	11.9
Max.main boom	m	44.5
Max.main boom+jib	m	60.3
