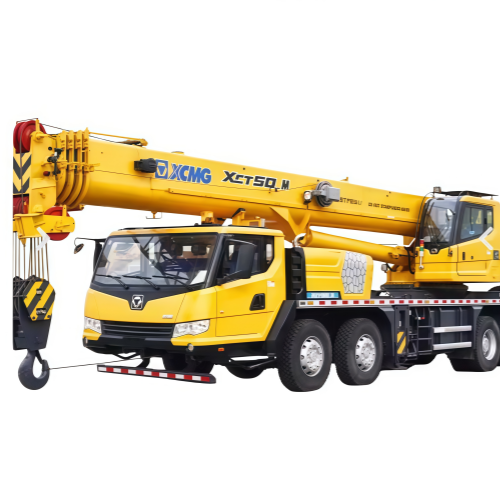

XCMG XCT50_M Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: XCT50_M
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XCMG New 50 ton Truck Crane XCT50_M Mobile Crane for sale.

The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.

1.Super lifting performance

5-section boom of 43.5 m with U-type profile is the longest of the same class in the industry; the max. parts of line is 12 for the main hook block. The performance is 8% higher than that of the competitors. The telescoping mode is updated from sequential telescoping to random telescoping. The change of boom length is more efficient, and the performance of medium-long boom is higher.

2.New energy-saving hydraulic system

Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency.

3.Drive train

rated power 247kw, max. torque 1350N.mMax. travel speed 90Km/h, Max. grade ability 38%.

Product Parameters

Item		Unit	Parameter
Dimensions (length x width x height)		mm	14040 * 2790 * 3630
Total vehicle mass in travel configuration		kg	40330
Axle load	1st and 2nd axle	kg	16530
	3rd and 4th axle	kg	23800
Engine model		–	W0615.334
Engine rated power/rpm		kW/(r/min)	247/2200
Max. output torque/rpm		N.m/(r/m1n)	1350/1100-1600
Max. travel speed		km/h	90
Min. turning diameter		m	24
Min. ground clearance		mm	250
App roach angle		°	18/10 (front protective device included)
Departure angle		°	13
Max. grade ability		%	38
Fuel consumption per 100 km		L	35
Max. total rated lifting capacity		t	50
Min rated working radius		m	3
Max. load moment	Base boom	kN.m	2009
	Fully-extended boom	kN.m	933
Outrigger span	Longitudinal	m	6.1
	Lateral	m	7.1
Hoist height	Base boom	m	11.2
	Fully-extended boom	m	43.3
Boom length	Base boom	m	11.4
	Fully-extended boom	m	43.5
Jib offset angle		°	0、15、 30
Boom raising time		s	≤40
Boom fully extending time		s	≤90
Hoistin Hoisting speed	Main winch	m/min	≥130
(single line, 4th layer, no load)	Auxiliary winch	m/min	≥130
