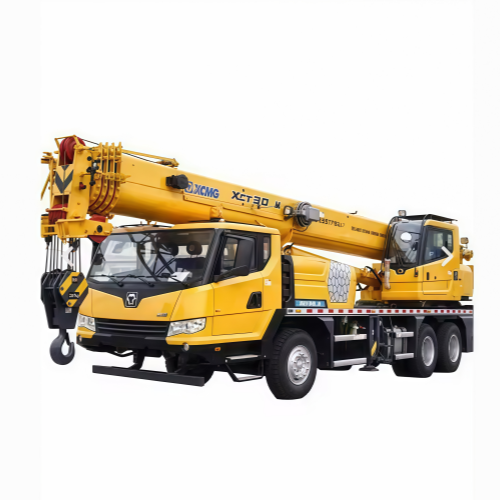

XCMG XCT30 Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: XCT30
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XCT30_MTruck crane is widely used for the lifting operations in Oilfields, mines, general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
5-section boom of 40.5 m with U-type profile is adopted ;
The max. lifting load is 30 t;
The max. lifting height is 48.1 m;
The max. working radius is 38.4 m;
The performance takes the lead comprehensively.

Product Parameters

Item		Unit	Parameter
Dimensions (length x width x height)		mm	12362×2550×3415
Total vehicle mass in travel configuration		kg	30000
Axle load	1st and 2nd axle	kg	6400
Axle load	3rd axle	kg	11800
Engine rated power/rpm		kW/(r/min)	192/2200
Max. output torque/rpm		N.m/(r/min)	1000/1400
Max. travel speed		km/h	85
Min. turning diameter		m	20
Min. ground clearance		mm	261
Approach angle		°	16.5
Departure angle		°	13
Max. grade ability		%	40
Fuel consumption per 100 km		L	32
Max. total rated lifting capacity		t	30
Min rated working radius		m	3
Max. load moment	Base boom	kN.m	965
Max. load moment	Fully-extended boom	kN.m	576
Outrigger span	Longitudinal	m	5.23
Outrigger span	Lateral	m	6.4
Hoist height	Base boom	m	10.5
Hoist height	Fully-extended boom	m	40.3
Boom length	Base boom	m	10.4
Boom length	Fully-extended boom	m	40.5
Jib offset angle		°	0,15, 30
Boom raising time		s	≤38
Boom fully extending time		s	≤90
HoistinHoisting speed (single line, 4th layer, no load)	Main winch	m/min	≥120
HoistinHoisting speed (single line, 4th layer, no load)	Auxiliary winch	m/min	≤90
