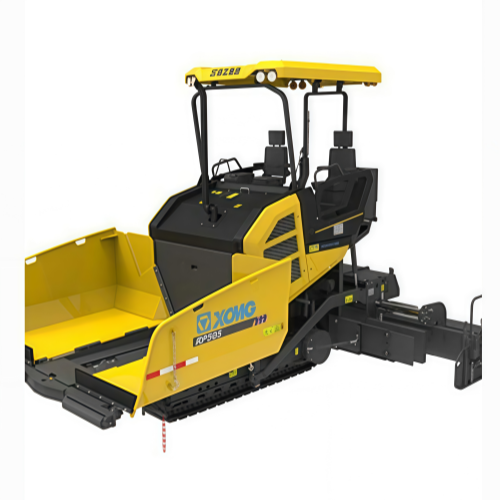

XCMG RP505 Paver

Product Category: Paver
Brand: XCMG
Model: RP505
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

RP505 paver is a hydraulic-driven small wheeled paver with <6m paving width. It’s especially suitable for the constructions with specific construction quality requirements, including small roads, urban road construction, and classified highway maintenance, and can meet the constructions under narrow working conditions, including sidewalks, auxiliary lanes, non-motorized vehicle lanes, and ditches.

Product Parameters

Item	parameter
Model Number	RP505
Full Weight	12500 kg
Overall Dimension(LxWxH)	5820x2000x3690 mm
Basic Pave Width	1.8-3.4 m
Maximum Pave Width	5 m
Maximum Layer Thickness	280 mm
Maximum Travel Speed	0-30 m/min
Maximum Paving Speed	0-4.5 km/h
Maximum Laydown Rate	400 t/h
Engine Rated Power	86 kw/ 2200 rpm
