Product Category: Paver
Brand: XCMG
Model: RP1253T
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

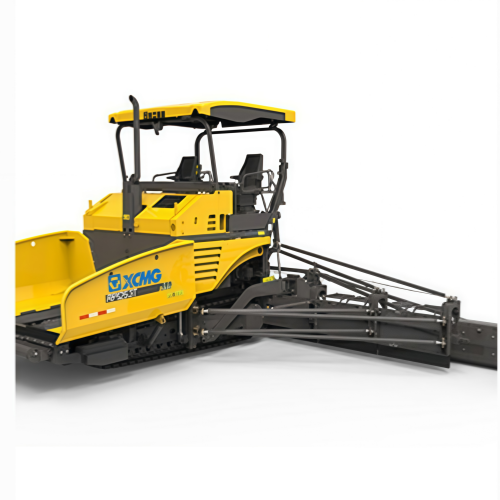

As the flagship of XCMG large paver series, RP1253T earns its reputation by high reliability, construction capacity, excellent working performance and high cost performance. It is especially capable of large-scale roadbed construction for highways and all grades of highways. This machine type incorporates state-of-the-art technologies including full hydraulic drive, microcomputer control, left and right independent drive, ultrasonic material level sensor control, double tamper compaction, etc. It shows its strengths in terms of extra-thickness laydown capacity, paving stability, pre-compacting density, surface smoothness, operation comfort and maintenance accessibility. The optimal-matched key components and superb production quality makes it ideal for paving stabilized material as well as bituminous concrete.
| Item | Unit | Parameter |
| Engine manufacturer | – | SDEC |
| Engine Model | – | SC9DF330 |
| Rated Power | kW/rpm | 243/2000 |
| Operating weight | kg | 23500~35800 |
| Overall dimensions | mm | 6880x3000x4070 |
| Basic Pave Width | m | 3 |
| Maximum Pave Width | m | 12.5 |
| Maximum L ayer Thickness | mm | 500 |
| Maximum Paving Speed | m/min | 20 |
| Maximum Travel Speed | km/h | 3 |
| Theoretic productivity | t/h | 15 |
| Hopper Capacity | t | 1200 |
| Gradeability | % | 20 |
| Heating of screed | – | Gas heating |
| Travel type | – | Crawler |
