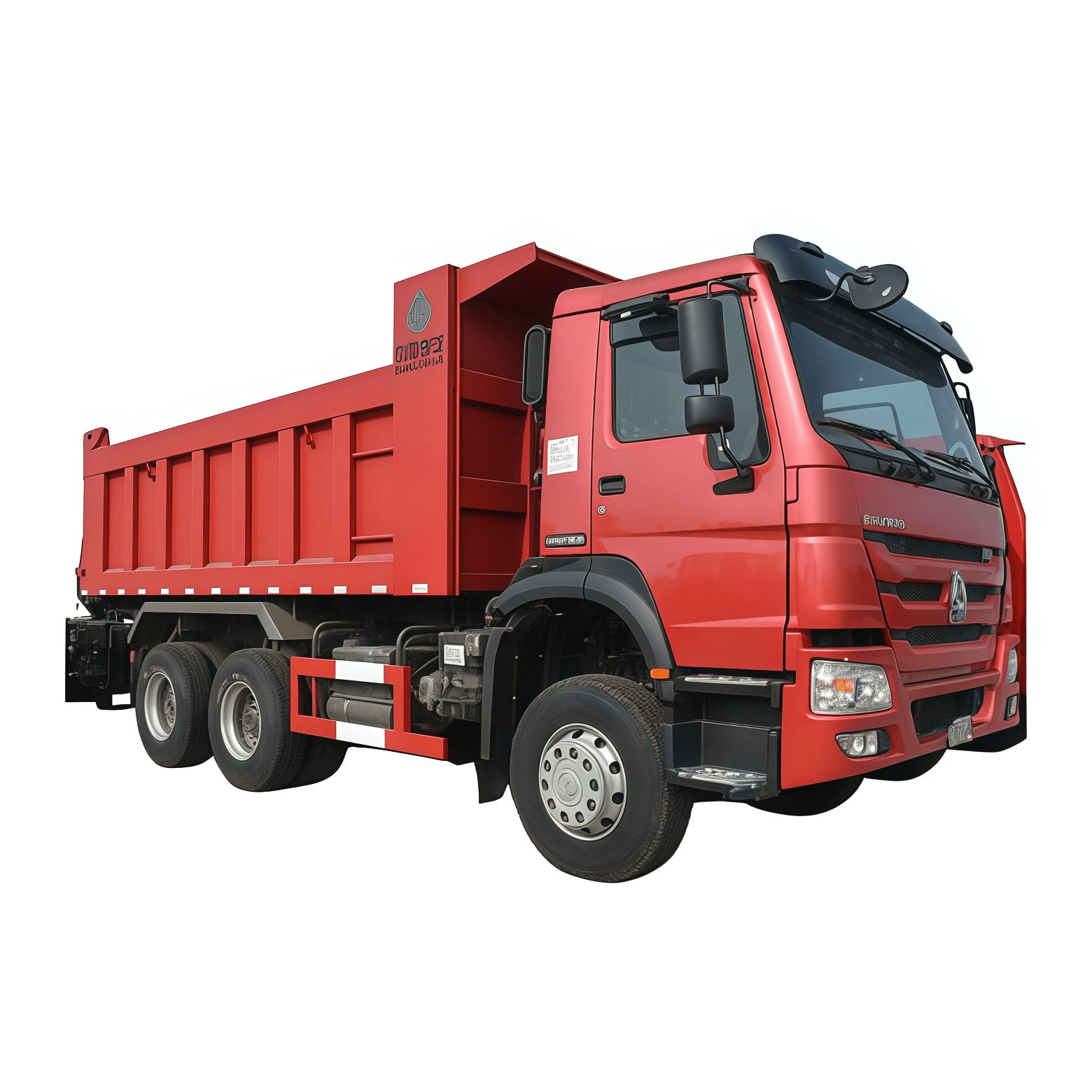

Cnhtc 40 Ton Dump Truck For Sale

Truck Brand

SINOTRUK –HOWO

Dimension(Lx W x H)(unloaded)(mm)

8614x2496x3450

Cargo body size(L*W*H, mm) (mm)

5600x2300x1500

Cargo thickness(mm)

Bottom:8mm, Side:6mm

Lift type of Carriage

middle lifting

Approaching angle/Departure angle(°)

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3825+1350

Max speed(km/h)

75

Maximum gradeability (%)

40

Minimum ground clearance(mm)

314

Minimum turning circle (m)

20

Curb weight(kg)

12290

Loading Weight(kg)

30000

Fuel tanker capacity(L)

300

Fuel consumption(L/km)

23L/100 km

Clutch

Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology,

made in China)

Fuel type

Diesel

Horse Power, max(kw/rpm)

371hp

Emission

EURO II

Model

WD615,water-cooled,four strokes,6 cylinders in line with water cooling , directly injection

Bore

126mm

Stroke

130mm

Compression ratio

29.8hp/l

Specific fuel consumption

195g/kwh

Transmission

Model

HW19710, 10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8118 hydraulic steering with power assistance

Front axle

HF9

Rear axle

HC16

Tyre

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cabin

HW76cabin, one sleeper, with air conditioner
