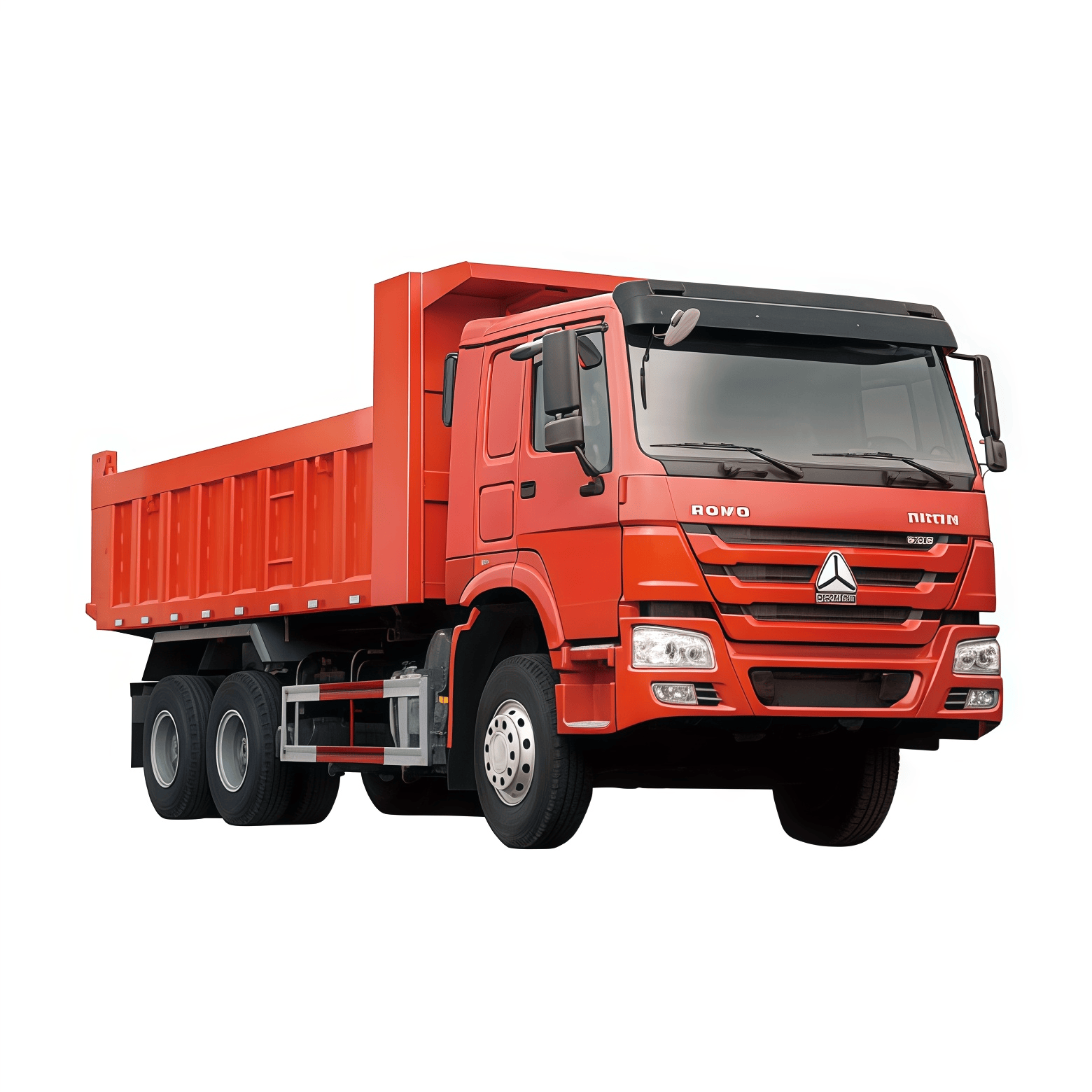

sinotruk howo dump truck specifications

Dimension(Lx W xH)(unloaded)(mm)

9010×2496×3170

Approaching angle/Departure angle(°)

19/23

Overhang(front/rear) (mm)

1500/1870

Wheel base (mm)

4300+1350

Max speed(km/h) (km/h)

102

Curb weight(kg)

12280

Engine

(Steyr technology, made in China)

Model

WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

247/2200

Emission

EURO Ⅱ

Fuel tanker capacity(L)

300

Transmission

Model

HW19710,10 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8098

Front axle

HF9

Rear axle

HC16

Tyre

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO70 cab(A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
