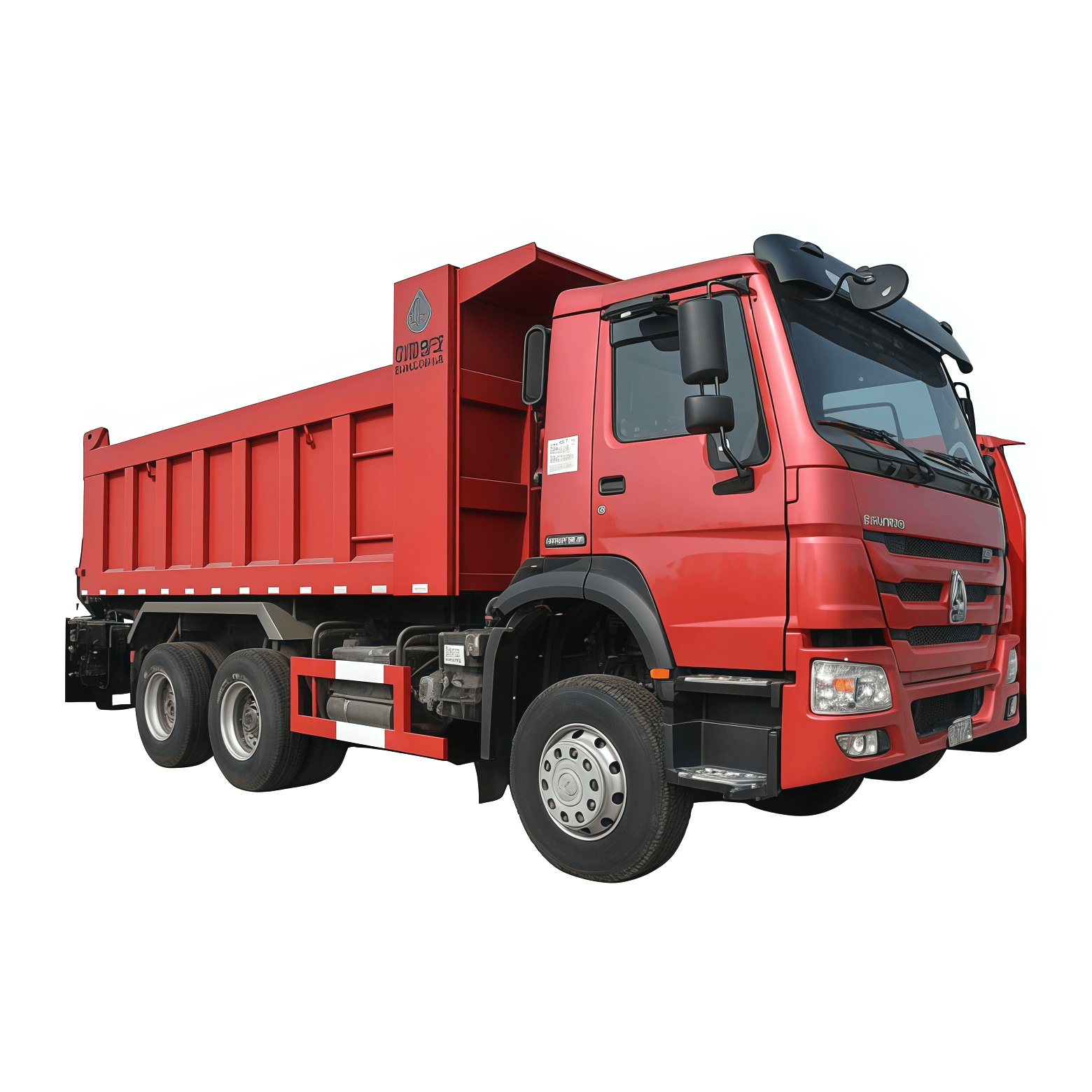

sinotruk howo dump truck price

Product name : sinotruk howo dump truck price
1 : Horse Power- 290hp
2 : Drive Model- 6x4
3 : Payload- 20t
4 : Cargo Box Size- 5400mmx2500mmx1400mm
5 : Tires- 12.00R20

Product Specification: sinotruk howo dump truck price

Advantages For 6x4 SINOTRUK HOWO Dump Truck
1. Heavy duty truck chassis sinotruk howo
2. Reinforced body structure with proven telescopic tipping gear,with front lifthing or middle liffting for option.
3. Combination of driving comfort and power
4. Key pressure point reinforced cargo body
5. Robust powertrain can help you handle any challange at the construction site
6. Stable and reliable under-body tipping device ensures low-gravity hoisting

Truck Model		ZZ3257M3647W, LHD ,RHD both available
Truck Brand		SINOTRUK -HOWO
Dimension(Lx W xH)		8145x2496x3386
Cargo body size (LWH, mm)		5400x2300x1400
Cargo body thickness(mm)		bottom:8mm, side:6mm, or customized as you required
Lift type of Carriage		Ventral lifting
Approaching angle/Departure angle(°)		19/26
Overhang(front/rear) (mm)		1500/1739
Wheel base (mm)		3625+1350
Max speed(km/h)		75
Curb weight(kg)		11290
Loading Weight(kg)		25000
Fuel Tanker		300L with locking fuel cap
Fuel consumption(L/100km)		32
Clutch		Single-plate dry clutch Φ430mm
Engine	Model	WD615.87,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling ,
	Horse Power,	290HP
	Emission Standard	EURO II
Transmission	Model	HW 19710,10 forwards and 2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	ZF8098/ZF8118 hydraulic steering with power assistance
Front axle	HF9
Rear axle	HC16
Tire	12.00R20
Electrical system	Operating voltage		24V,negative grounded
	Starter		24V,7.35KW
	Alternator		28V,1500W
	Batteries		2*12V.165Ah
