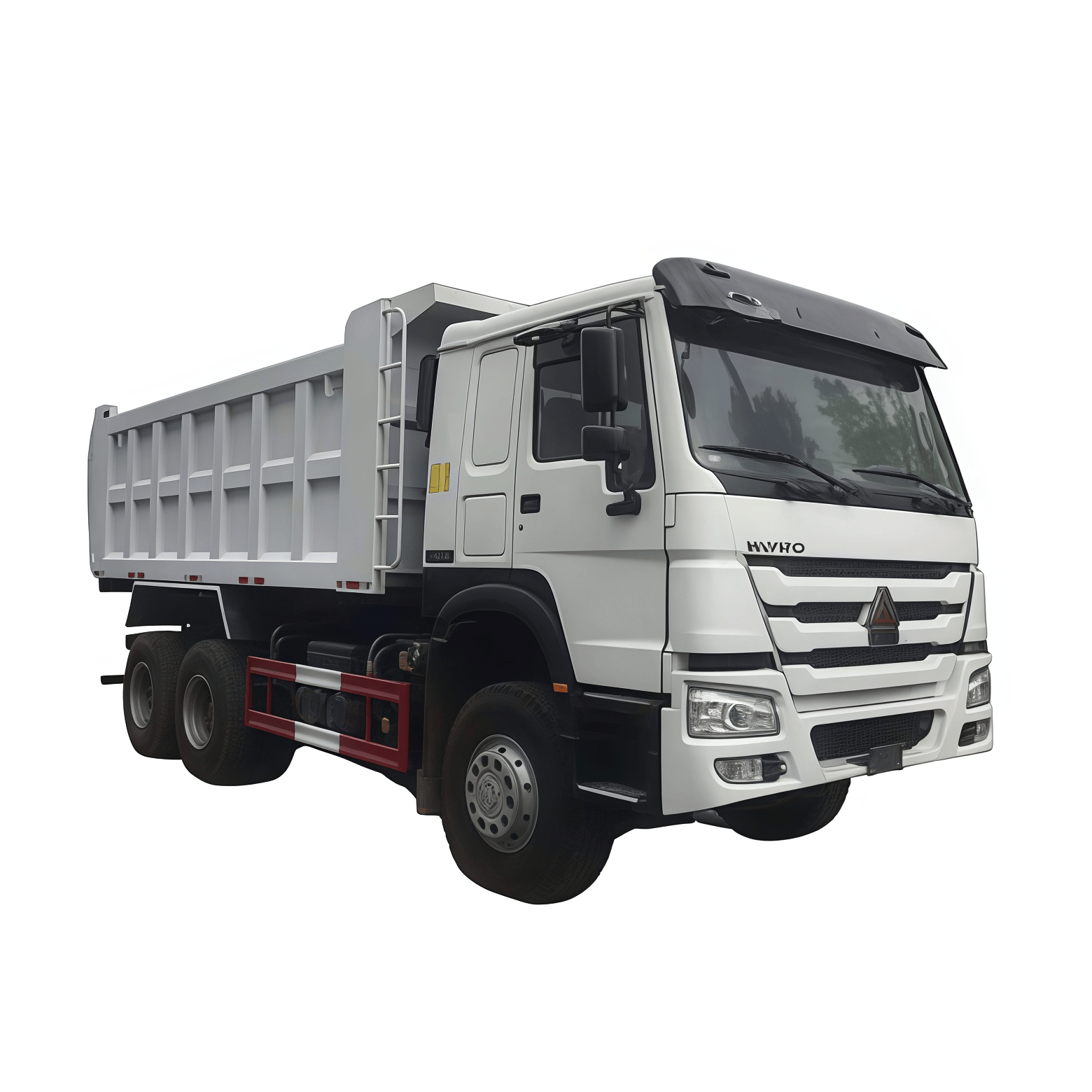

howo dump truck euro 4

Model

ZZ3257N3447C1

Condition

New

Drive type

6×4

Brand

HOWO Dump Truck

Steering Wheel Type

LHD(Left hand drive)   (RHD is in option)

Overall Dimension(mm)

7835×2496×3170

The total mass(Kg)

25000

Kerb weight(kg)

12390

Wheel base(mm)

3425+1350

Dimension of cargo body(mm)

L×W×H

5200×2300×1500

Thickness of steel plate

Bottom:    Side:

Capacity

Tipping system

HYVA Front tipping system

Fuel Type

Diesel

Engine

Type

SINOTRUK brand,D10.38  Inline six-cylinder, water-cooled, four-stroke,

turbocharged inter-cooled

Direct injection

Emission standard

EURO 4

Horse power

380hp

Maximum output

273Kw @ 2200 rpm

maximum torque

1500N.m

Displacement(L)

9.726

Cabin

HW76 Cabin with two seats, and one sleeper, air conditioner,

Steering

German hydraulic steering with power assistance

Transmission

Manual Type. HW19710 Sinotruk 10 Speed Transmission,10 forward and 2 reverse

Clutch

Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting

Front axle

HF9(9 ton), plate (disc) brake

Driving axle

HC16(16 ton) Heavy hub reduction drive axle

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system

Parking brake: Potential springs pressing on middle and reel wheels

Engine brake: Engine exhaust brake(EVB)

TYRE Size

12.00-20  tires No. tire: 10+1 spare

Suspension system

 Leaf spring type

Leaf Spring of Front/Rear

10/12

Air condition includes

YES

Fuel tank

300L

Color

As the customer request
