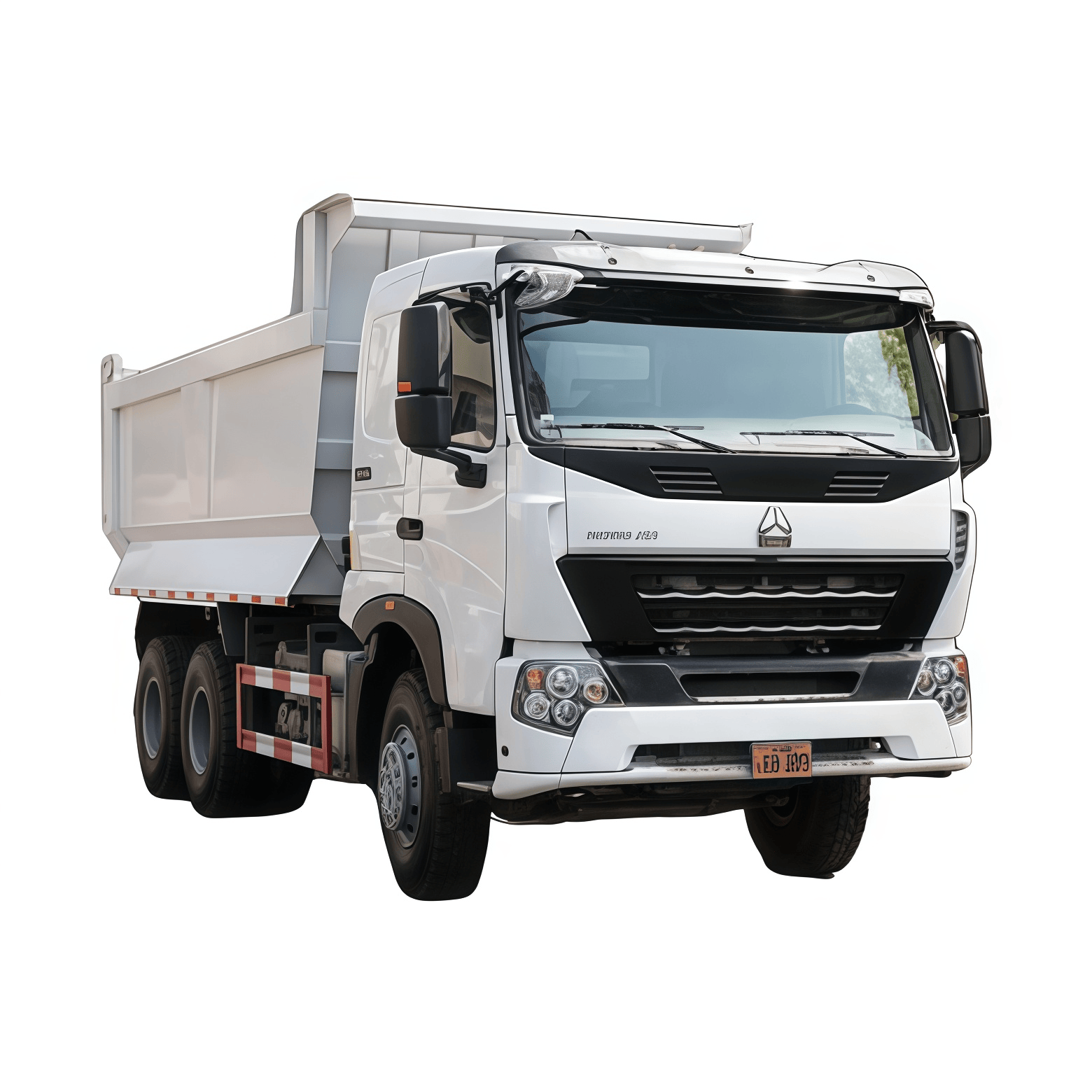

howo dump truck a7

Truck Brand

SINOTRUK -HOWO A7

Driving Type

Left Hand Driving

Dimension(Lx W xH)(unloaded)(mm)

7665x 2496x3490

Cargo body size (L*W*H, mm)

4800x2300x1500 Volvo cargo body

Cargo body thickness(mm)

bottom:8mm, side:4mm

Lift type of Carriage

middle lifting

Approaching angle/Departure angle(°)

20/29

Overhang(front/rear) (mm)

1540/1550

Max speed(km/h)

78

Curb weight(kg)

11950

Loading Weight(kg)

25000

Fuel tanker capacity(L)

300

Fuel consumption(L/km)

20-30 L/100 km

Clutch

Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

Fuel Type

Diesel

Engine Brand

CNHTC

Horse Power, max(kw/rpm)

380HP

Emission

EURO 2

Model

D10.38-40


Transmission

Model

HW19710,

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

hydraulic steering with power assistance

Ratio:22.2-26.2

Front axle

HF9 disc brake, Steering with double T-cross section beam

Loading capacity:9000kg

Rear axle

AC16, Pressed axle housing, central double reduction with differential locks between axles and wheels

Loading capacity:2x13000kg

Ratio:5.45

Color

Optional(Waiting for picture to confirm)

Tire

12.00R20

Tire quantity

12+1 Spare

Electrical system

Battery

2X12V/180Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

A7-W standard cab with air conditioner. 4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc.
