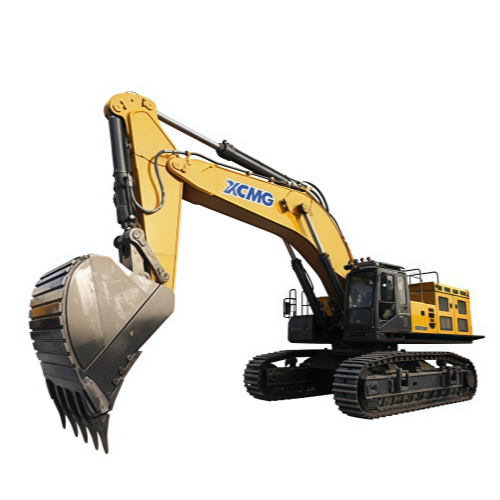

XE950G Mini Excavator with 6 m³ Bucket

Product Feature

1. This new-generation 95-ton mining hydraulic excavator utilizes a high-horsepower Perkins 2806J mining engine imported from the United States. It meets China Stage IV, North American Tier 4F, and European Stage V emission standards, offering powerful power, low noise, low fuel consumption, and low emissions. It also features an electronically controlled single-pump fuel system tailored to the Chinese market, significantly reducing engine failure rates.

2. Optimized configuration of key hydraulic components, including a main valve with a larger diameter and pressure rating, a slewing reducer with an integrated output mechanism, and a larger travel reducer, ensures the XE950G boasts greater hydraulic power and greater slewing and travel drive force, making it ideal for harsh mining operations.

3. A standard 6-cubic-meter rock bucket ensures higher operating efficiency.

4. An advanced electronically controlled positive flow system significantly enhances operational sensitivity and intelligence.

5. The cooling system utilizes dual-pump independent cooling technology for increased energy efficiency and noise reduction.

6. The new-generation positive-pressure cab features high strength, excellent comfort, and integrated intelligent interfaces to meet the needs of high-end users.

7. The four-wheel drive system features reinforced longitudinal beams, H-frames, track links, and rollers, significantly increasing load capacity. The work attachment utilizes a lightweight box-type structure. Stress analysis and fatigue life testing have ensured sufficient structural strength and rigidity. Furthermore, rigorous impact testing has shown a 30% reduction in average stress compared to the XE900D, enabling it to meet the demands of heavy-duty excavation and mining.

8. Thicker plates at weak points on the slewing platform, boom, and dipper arm increase load capacity by 50% compared to the XE900D and significantly improve the bending section modulus.

9. A single-line electric centralized lubrication system ensures accurate lubrication cycles and precise grease delivery, eliminating missed lubrication points during manual greasing and reducing labor intensity.

Product Parameters
