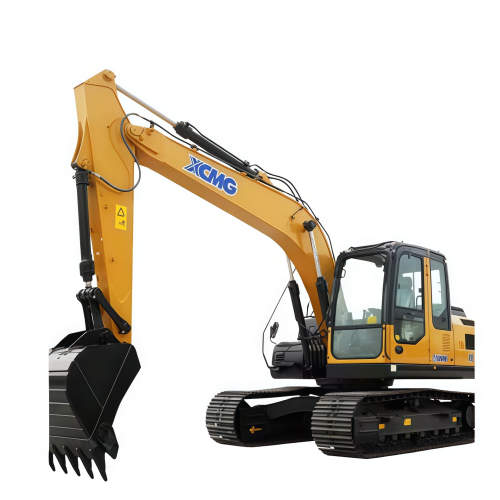

XE150D Crawler Excavator with 0.52~0.61 m³ Bucket

Product Category: Crawler Excavator
Bucket Capacity: 0.52~0.61 m³
Operating weight: 14400 kg
Brand: XCMG
Model: XE150D
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China

Product Feature

1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

Product Parameters

	Unit	Parameters
	Unit	Parameters
Model	Operating weight	Kg	14400
	Bucket capacity	M³	0.52~0.61
	Engine model	/	CUMMINS 4BTAA3.9
Main	Gradient capability	°	≤35°
performance	Ground pressure	KPa	38
	Digging capacity of bucket	KN	85
	Digging capacity of bucket rod	KN	65
	Max traction force	KN	135
	Main pump	/	Two plunger pumps
Hydraulic	Rated flow of main pump	L/min	2×120
system	Pressure of main sadety valve	MPa	31.4/34.3
	Pressure of traveling system	MPa	34.3
	Pressure of swing system	MPa	25
	Pressure of pilot system	MPa	3.9
	Fuel tank capacity	L	250
Oil volume	Hydraulic tank capacity	L	130
	Engine oil volume	L	14
	A Total length	mm	7801
	B Total width	mm	2590
	C Total height	mm	2880
Overall	D Width of rotary table	mm	2512
Dimension	E Length of track	mm	3660
	F Total width of chassis	mm	2590
	G Width of track	mm	600
	H Wheelbase of track	mm	2910
	I Track gauge	mm	1990
	J Counterweight ground clearance	mm	964
	K Min ground clearance	mm	478
	L Min tail swing radius	mm	2325
	A Max.digging height	mm	8641
	B Max unloading height	mm	6181
Working	C Max digging depth	mm	5538
Radius	feet digging bepth under ground	mm	5287
	E Max vertical digging bepth	mm	4727
	F Max digging radius	mm	8296
	G Max swing radius	mm	2335
Stabdard	Boom length	mm	4600
Configuration	Length of bucket rod	mm	2510
	Bucket capacity	M³	0.61
Optional	Bucket capacity	M³	0.52 Rock bucket
