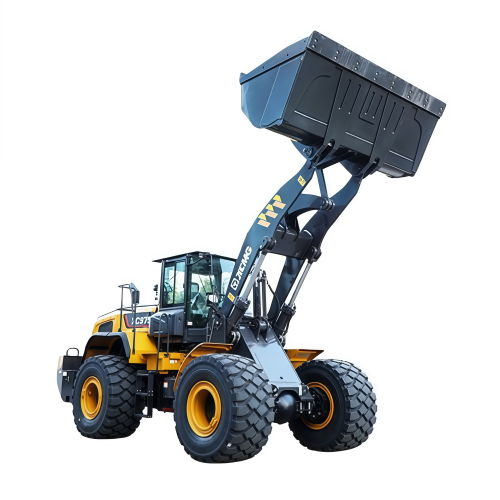

XCMG XC975 Large loaders

Product Feature

• XC975 is equipped with Weichai National IV emission engine, ZF4BP230 automatic electronically controlled stator gearbox, reinforced drive axle with single side and three brake calipers, XCMG patented fixed-variable hydraulic system, XC9 series pressurized cab, and high-end atmospheric appearance, which is widely used in shoveling, unloading and leveling operations in ports, gravel quarries, coal yards, etc. The XC975 has a high quality, reliable, mature and stable quality.

• Sharing the internationalized high-end platform of XC9 series, it has been honed in the global high-end market for six years, with reliable quality, maturity and stability.

• Equipped with XCMG’s exclusive large-displacement, high-torque, high-power National IV engine, which is matched with different working modes for different working conditions, the comprehensive performance of power is improved by 11%, and the fuel consumption is reduced by more than 5%.

• It adopts ZF full-automatic gearshift transmission with electro-hydraulic control, with two modes of automatic gearshift and manual gearshift, advanced performance and easy operation.

• The drive axle is strengthened and upgraded, with good overload resistance to meet the needs of high-intensity and high-load operation, durable.

• Adopting super heavy load, large articulation and long wheelbase structural design, finite element analysis for structural parts, and robotic welding for key parts, it provides a solid mounting base for the arm and cylinder, which can absorb strong torsion and impact force.

• The front axle is equipped with a single-side three-brake caliper body, which provides greater braking force and safe and reliable braking.

• Adopting international standard hydraulic pipeline with better sealing, effectively solving the leakage problem.

• Optimized and upgraded hydraulic system, the cylinder lifting force is bigger, the lifting arm is faster, and the loading efficiency per hour is 5-10 buckets higher than the counterparts.

• It is equipped with 4.5m³ big bucket as standard, which is optimized, easy to cut in and has high full bucket rate.

• XC9 series internationalized and integral cab, with good sealing, more space and better vision, provides a comfortable driving environment for the operator, and the operation is quieter and more comfortable.

• The humanized design of operating elements and buttons within easy reach can easily and conveniently realize various operating actions.

• The full-coverage exquisite interior, adjustable steering column, non-slip rubber plate, spherical mirror, etc., create the best operating environment and bring a comfortable experience to the operator.

• Integral rear flip hood, electric lift, large opening angle, engine three filters and radiator overhaul and maintenance more easily.

Product Parameters
