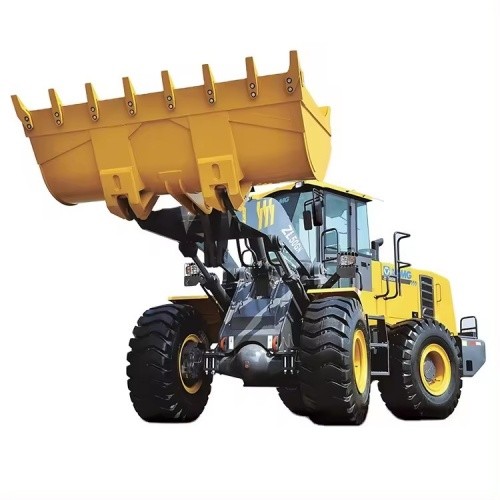

XCMG ZL50GN Wheel Loader

Product Category: Loader
Brand: XCMG
Model: ZL50GN
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

ProduProduct Feature

ZL50GN wheel loader is the latest cross-generation product developed by XCMG on the basis of the globalized technologic resources.Focusing on the customer value and emphasizing the customer experiences, XCMG’s new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.

serial number	Item Name		Parameter value
1	Rated load		5000 kg
2	Tipping load		123 KN
3	Bucket capacity		3.0 m3
4	Bucket width		3016 mm
5	Unloading height		3090 mm
6	Unloading distance		1130 mm
7	Lifting height		5370 mm
8	Bucket lift time		≤6 s
9	Three items and time		≤11 s
10	Maximum lifting force		170 kN
11	Maximum traction force		165±5 kN
12	Weight of the whole machine		17.5 T
13	Articulation angle		±35°
14	Minimum turning radius (tire center)		6400 mm
15	Climbing capacity		30°
16	Minimum Ground Clearance		450 mm
17	Wheelbase		3300 mm
18	Wheelbase		2250 mm
19	Speed	Forward	First gear 0～11.5Km/ Second gear0～38Km/h
		Reverse	0～16.5Km/h
20	Engine model		WD10G220E23
21	Rated power		162 KW
22	Rated speed		2000r/min
23	Tire specification		23.5-25-16PR
24	Overall dimensions		L8165×W3016×H3485mm
