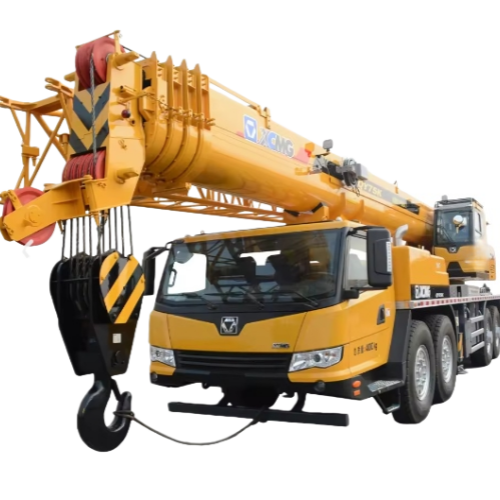

XCMG QY75K Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: QY75K
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XCMG QY75K Official 75 ton mobile truck crane price list hydraulic new truck crane.

The QY75K four-axle steering 75-ton truck crane has a compact structure, coordinated layout, and highest industry performance.
Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.

Product Parameters

Parameter Item		Scale	Unit
Dimensions	Overall length	12100	mm
	Overall width	2980	mm
	Overall height	3530	mm
Weight	Dead weight in travel state	38350	kg
	1st axle	17750	kg
	2nd axle	20750	kg
Power	engine model	QSB6.7
	engine rated output	149/2100	KW/(r/min)
	engine rated torque	740/1500	N.m/(r/min)
Travel	Max.travel speed	≥35	km/h
	Min.turning diameter	≤5.5	m
	Min.ground clearance	460	mm
	Approch angle	25.8	°
	Departure angle	21.8	°
	Max.gradeability	≥55	%
Lifting Performance	Max.total rated lifting load	50	t
	Min.rated working radius	3	m
	Turning radius at swing table tail	4090	mm
	Base boom amx.load moment	1690	kn.m
	Base boom	10.3	m
	Full-extended boom	38.2	m
	Full-extended boom+Jib	55	m
	Outrigger longitudinal distance span	7	m
	Outrigger lateral distance span	7.0/5.8	m
Working speed	Boom elevating time	≤80	s
	Boom telescoping time	≤120	s
	Max.swing speed	≥2.0	r/min
	Main winch max. speed(on load)	≥125	m/min
	Auxiliary winch max. speed(on load)	≥125	m/min
