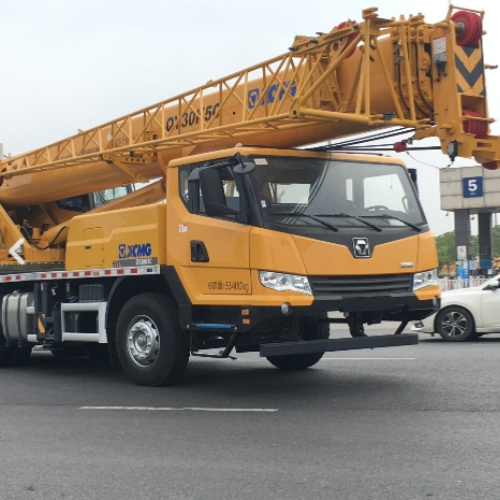

XCMG QY30K5C Truck Crane
Product Category: Truck Crane
Brand: XCMG
Model: QY30K5C
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas
Product Feature
XCMG Manufacturer Construction Crane QY30K5C 30 Ton Mobile Lifting Truck Cranes.
Designed and manufactured by XCMG, with all covered walking surface, anti-torsion box structure and optimal load-bearing structure design, made of imported high strength steel.
SC9DF300.1Q5, in-line six-cylinder water-cooled EFI diesel engine, rated power 221kW /2200rpm, max. torque 1250Nm / 1400rpm, the national V emission standards. Fuel tank capacity:320L
FAST manually mechanical control,9-speed available, synchronizer is equipped.
Product Parameters
| Description | Unit | Parameter value | |
| Overall length | mm | 12850 | |
| Overall width | mm | 2550 | |
| Overall Height | mm | 3480 | |
| Wheel Base | mm | 4500+1350 | |
| Track | mm | 2059/2074/1834 | |
| Total vehicle mass in travel configuration | kg | 33000 | |
| Axle load | 1st axle | kg | 7400 |
| 2nd axle | 12800 | ||
| Engine Model | SC9DF300.1Q5 | ||
| Engine rated power | kw/(r/min) | 221/2200 | |
| Engine rated torque | N.m/(r/min) | 1250/1400 | |
| Max. travel speed | km/h | ≥90 | |
| Min. turning diameter | m | ≤21 | |
| Min. ground clearance | mm | 250 | |
| Max. grade ability | % | ≥40 | |
| Approach angle | ° | 11 | |
| Departure angle | ° | 13.5 | |
| Braking distance (at 30 km/h, full load ) | m | ≤10 | |
