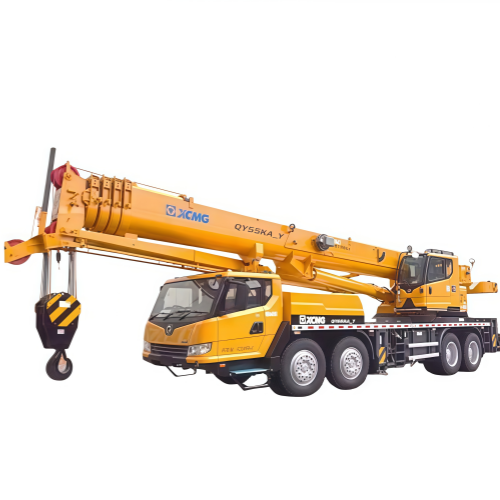

XCMG QY55KA-Y Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: QY55KA-Y
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XCMG Construction Machinery 55 ton mobile Truck Crane QY55KA-Y

Newly upgraded 55-ton truck crane with compact structure and highest operating performance in the industry.
Five section U-type booms the boom length is 11.4-43.5 m with stronglifting performance ,leading 5%-10% ahead of products with the same tonnages in the same industry .
High-power engine with good dynamic performance ,strong gradeability and superior trafficability .The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
Waterproof connector clip ,it is equipped with rubber sheath inside wtih excellent water imperviousa and level of protection reaches to IP65.
Aluminium alloy fuel tank .good appearance quality , corrosion resistance , strong shock resistance capacity .
Double broken line winch, the hoisting rope is in alignment and it will be more reliable if turn off the press-rope machine .

Product Parameters

Dimensions	Total length	13100	mm
	Total width	2750	mm
	Total height	3350	mm
Weight	Total weight in a traveling state	38580	kg
	Front axle load	12950	kg
	Rear axle load	25630	kg
Power	Engine model	Euro lll Hangfa WD615.334/Euro ll hangfa WD615.46
	Rated Engine Power	206/2200 266/2200	kW/(r/min)
	Engine rated torque	1100/1400 1460/1400	N.m/(r/min)
Travel	Max.travel speed	66 75	Km/h
	Min.turning diameter	24 24	mm
	Min.ground clearance	285 285	mm
	Approach angle	16 16	°
	Departure angle	11 11	°
	Max.gradeability	27 46	%
	Fuel consumption of 100km	42 42	L
Lifting performance	Max.lifting capacity	50	t
	Min.rated working radius	3	m
	Turning radius at swing tadble tail	3482	m
	Max.lifting torque		kN.m
