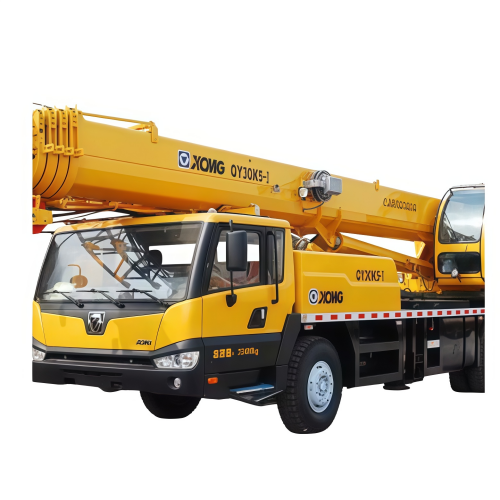

XCMG QY30K5-I Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: QY30K5-I
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XCMG official QY30K5-I chinese crane truck hoist 30 ton hydraulic truck crane price for sale

Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

Product Parameters

Category	Item		Unit	Parameter
Outline Dimensions	Overall length		mm	12570
	Overall width		mm	2500
	Overall height		mm	3390
	Wheel base		mm	5025+1350
	Track		mm	2074/1834/1834
Weight	Total vehicle mass in travel configuration		kg	32400
	Axle load	1st axle	kg	7600
		2nd and 3rd axle	kg	24800
Power	Model			SC8DK280Q3
	Engine rated power		kw/(r/min)	206/2200
	Engine rated torque		N.m/(r/min)	1112/1400
Travel Performance	Max. travel speed		km/h	80
	Min. turning diameter		m	22
	Min. ground clearance		mm	291
	Max. grade ability		%	40
	Approach angle		°	19
	Departure angle		°	13
	Braking distance (at 30 km/h, full load )		m	≤10
	Oil consumption per 100km		L	40
Noise	Exterior noise level during acceleration traveling		dB (A)	88
	Noise level at seated position		dB (A)	90
