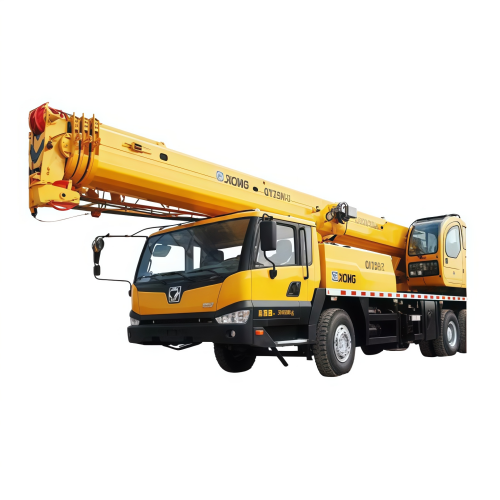

XCMG QY25K-II Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: QY25K-II
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XCMG QY25K-II construction rc crane truck 25 t mobile ceane price

Main parameters:

Max. rated total lifting capacity: 25T

Fully extended boom:34.2M

Fully extended boom+jib:42.3M

Main configuration:

* WeiChai engine/ShangChai engine WD615.329/SC8DK280Q3 213/2200/206/2200

* Wire rope

* Hirschmann PAT

*Heater

XCM-G QY25K-II is technology crystallization which our company applies for many years manufacturing experience,bases on the mature technology.Using full cover to take the platform; using high lift balance weight, greatly improving the ease of use of the product;classic K series appearance; full hydraulic drive, easy to operate, flexible.

Product Parameters

Item			Unit
Dimensions	Total length	12650	mm
	Total width	2500	mm
	Total height	3380	mm
Weight	Operating Weight	29400	Kg
	Front axle load	6200	Kg
	Rear axle load	23200	Kg
Power	Engine model	SC8DK280Q3/WD615.329
	Engine power ratings	206/2200 312/2200	Kw(r/min)
	Engine torque ratings	1112/1400 1160/1400	N.m(r/min)
Travel	Max.travel diameter	75	Km/h
	Min.turning diameter	21.5	m
	Min.ground clearance	275	mm
	Approach angle	16	.
	Departure angle	13	.
	Max.gradeability	30	%
	Fuel consumption of 100km	37	L
Driving Parameters	Max.total lifting capacity	25	t
	Min. working radius	3000	mm
	Turning radius at swing table tail	3.065	m
	Max.lifting torque	1010	Kn.m
	Basic boom lifting length	10.7	m
	Longest boom lifting length with secondary arm	42.15	m
	Longest boom lifting length	34.19	m
	Outrigger longitudinal distance span	5.14	m
	Outrigger lareral distance span	6	m
Working speed	Elevation duration for secondary boom	75	s
	Elevation duration for fully extended boom	100	s
	Max.rotation speed	≥2.5	r/min
	Max.speed for main winch	≥120	m/min
	Max.speed for auxiliary winch	≥120	m/min
