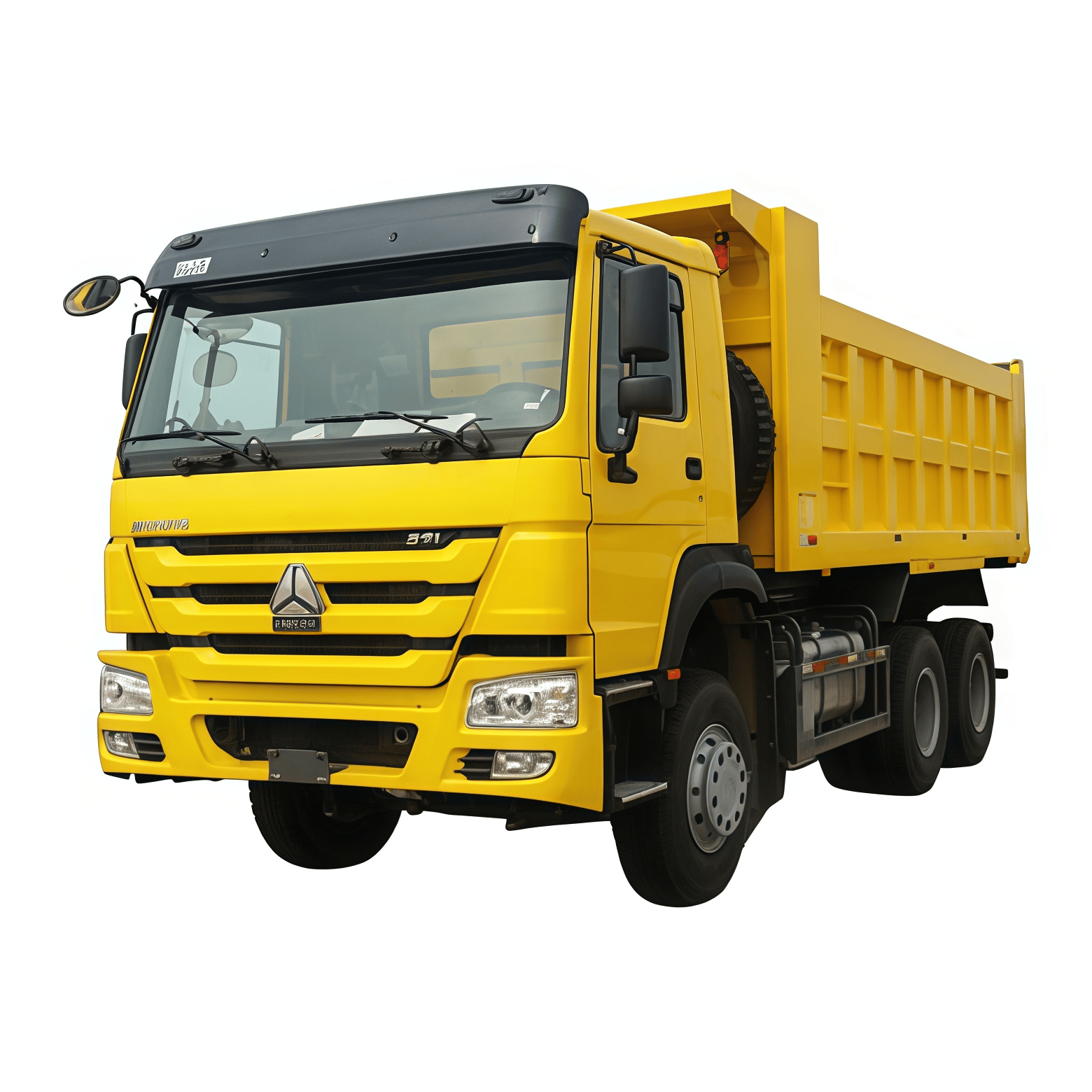

volquete howo 371hp

HW70 cab. volquete howo 371hp

Original luxury Volvo cab with air-condition.

Vehicle Main Dimensions

L×W×H(mm)

84775×2496×3170

Wheel base(mm)

3625+1350

Wheel track (mm)

1840

Approach/Departure angle(°)

19/27

Weight in KGS

Tare Weight

12220, 12390

Loading Capacity

12650, 12480

Front axles loading capacity

1×7000

Rear axles loading capacity

2×9000

Max.Drinving Speed (km/h)

75

Engine

Brand

HOWO

Model

WD615.47

Type

6-cylinder in-line with water cooling;

4-stroke direct injection;

turbo-charging and inter-cooling

Horse Power(HP)

371 HP

Emission Standard

Euro II

Axle

HC16, overall cast steel axle and Han Ruisen disconnect suspension, HF9 drum

Gearbox

HW19710.10 block transmission

Clutch

Reinforced diaphgragm clutch, diameter 430mm

Steering Gear

ZF8118, original made in German.

Power steering, hydraulic steering with power assistance.

Fuel Tank(L)

300L

Tire

Ten units of 12.00-20 tubeless tires

Brakes

Service brake: dual circuit compressed air brake;

Parking brake: spring enengy, compressed air operating on rear wheels;

Auxillary brake: engine exhaust valve brake

Dump Body

Thickness

Side

6mm in high tensile strength steel Q345B

Front

6mm in high tensilestrength steel Q345B

Bottom

8mm in high tensile strength steel Q345B

Dump Body Size

L×W×H

5600mm×2300mm×1500mm

Tipping Hydraulics

Tipping Type

Middle tipping type

Tipping System

Complete set of HYVA brand hydraulics system
