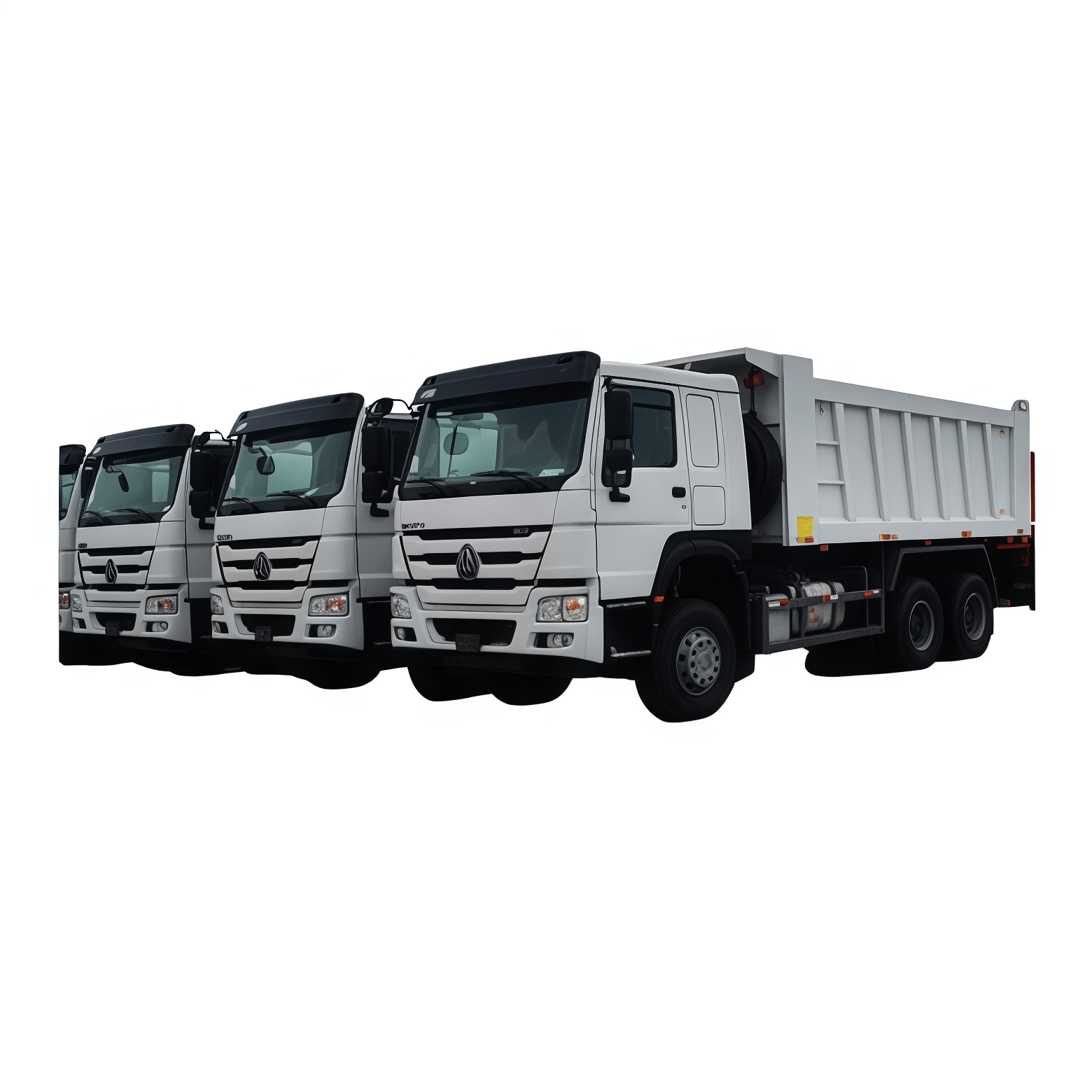

sinotruk dump truck price
Product name : sinotruk dump truck price
1 : Horse Power- 371hp
2 : Drive Model-6x4
3 : Payload-35t
4 : Cargo Box Size-5800mmx2300mmx1500mm
5 : Tires- 12.00R20
Product Specification: sinotruk dump truck price
1. HOWO 6x4 371HP WD615.47 Euro 2 engine,overall sizes(mm): 7545x2496x3170mm, the bottom 8 side 6, The top famous brand 149 lift cylinder, Air-conditioned sleeper.
2. Rated load of 31-40t, top lift, adopt a famous brand hydraulic cylinder.It is suitable for the transportation of bulk materials and whole goods in the construction materials, mines and construction sites.
3. With more than one hundred and thirty new patent technologies, howo heavy card is a truly efficient, efficient, comfortable, safe, intelligent and reliable intelligent high performance heavy truck.
| Truck Model | ZZ3257S4647 | |
| Truck Brand | SINOTRUK –HOWO | |
| Dimension(Lx W xH)(unloaded)(mm) | 9510x2496x3450 | |
| Cargo body size (L*W*H) | 5800x2300x1115 | |
Lift type of Carriage | Ventral lifting(optional) | |
Approaching angle/Departure angle(°) | 14/21 | |
Overhang(front/rear) (mm) | 1500/2035 | |
Wheel base (mm) | 4625+1350 | |
Max speed(km/h) | 80 | |
Curb weight(kg) | 12490 | |
Loading Weight(kg) | 25000 | |
Fuel tanker capacity(L) | 300L | |
Clutch | Single-plate dry clutch Φ430mm | |
Engine Model
| Model | WD615.47 |
Horse Power, max(kw/rpm) | 371HP(optional) | |
| Emission | EURO II(optional) | |
Fuel Type | diesel | |
Transmission | Model | HW19710,10 forwards and 2 reverse |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust | |
Steering system | Model | ZF8118 |
Front axle | HF9 | |
Rear axle | HC16 | |
Color | Optional | |
Tire | 12.00R20 Steel wire tire ,10+1 spare | |
Electrical system | Operating voltage | 24V, negative grounded |
Starter | 24V,7.35KW | |
Alternator | 28V,1500W | |
Batteries | 2*12V.165Ah | |
Cab | HOWO76 cab, (single sleeper, with air-condition). | |
JINAN CHASING VEHICLE CO., LTD was established in 2004. It is a company inte-grating product research and development, production, trade, and mainly engaged in the manufacture of semi trailers, trailers, trailer accessories, and used truck sales.
The company covers an area of 150,000 square meters. It is a designated special vehicle manufacturer approved by the Ministry of Industry and Information Technology of China. It is also one of the earliest domestic companies to obtain China's well-known trademarks, ISO, CCC, and compulsory product certification.
