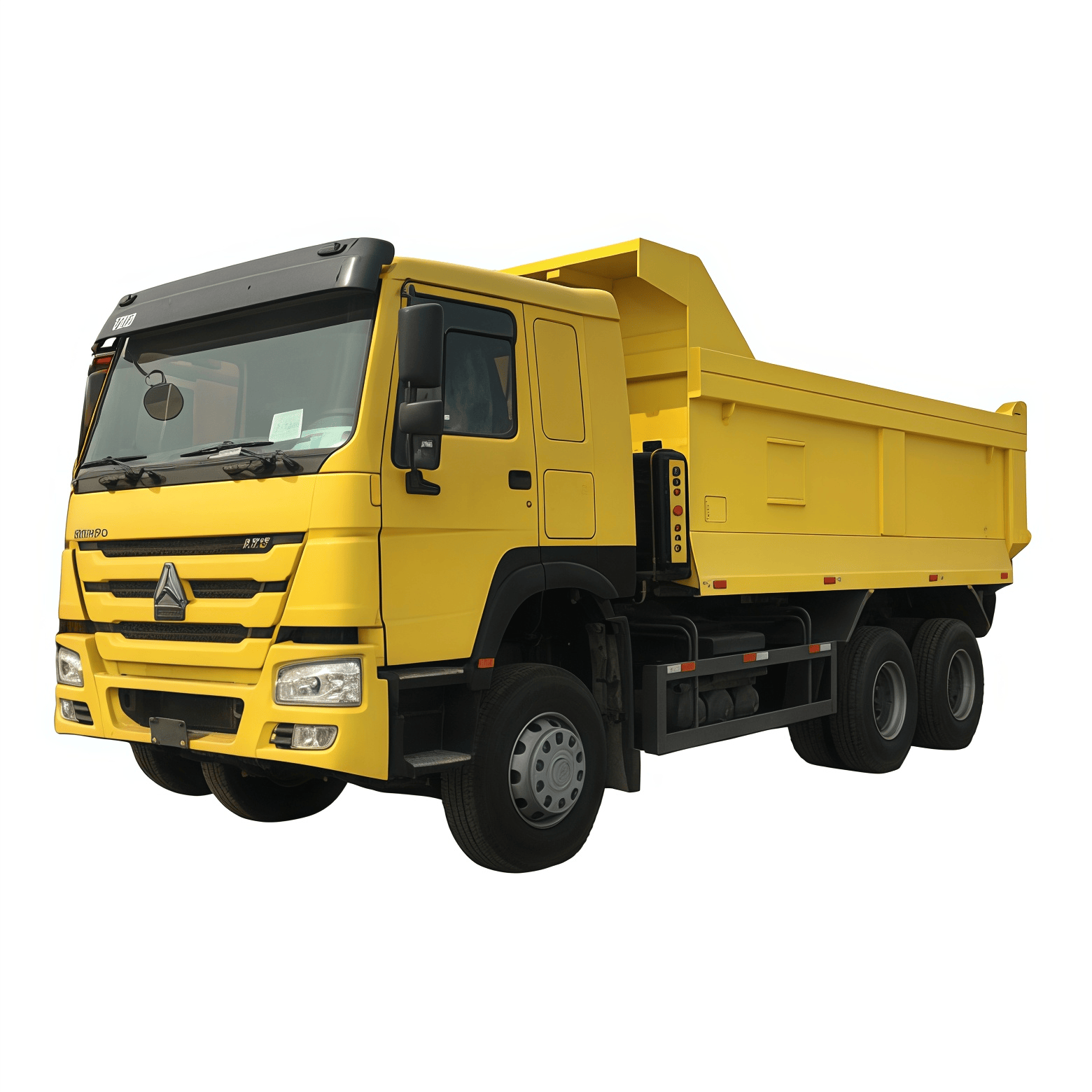

sinotruk 6x4 howo tipper

Product name : sinotruk 6x4 howo tipper
1 : Horse Power- 336hp
2 : Drive Model-6x4
3 : Payload-35t
4 : Cargo Box Size-5400mmx2500mmx1500mm
5 : Tires- 12.00R20

Product Specification: sinotruk 6x4 howo tipper

Cab:Howo 70&76 series cab
Engine:Sinotruk engine, 266, 290, 336, 371 hp;
Clutch:430 mm high-reliable clutch with power assistance.
Transm:25-30 tons
Optional:Abs(wabco), silicon oil fan, driving recorder, right hand driving,
Pto is included in tipper chassis.ission:Fuller-9js119 / zf-5s-150gp
Driving axle:Hc16 foundary wheel reduction driving axle.
Front axle:Howo front axle
Tire:11.00-20, 12.00-20, 12.00r20, 12.00r22.5

Vehicle model	sinotruk 6x4 Howo Tipper ZZ3257N3647A
Driving model	Left Hand Drive
Kerb weight kg	12000
Loading capacity kg	About 25000kg
Cab	HW76 long roof cab, with one bunk, two seats, air conditioner, German VDO instrument, adjustable seat, two-speed wiper and glass washer, sun visor, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers with transverse stabilizer.
Engine	Make: SINOTRUK, Engine model: diesel engine, WD615.69 336HP(247Kw) Euro 2 emission standard, Diesel: 4 stroke direct injection diesel engine, 6-Cylinder in-line with water cooling, turbo-charger and inter cooling, Displacement: 9.726L
Transmission	HW19710 SINOTRUK 10 forward&2 reverse gearbox
Nuclearance: 1500N.m	SINOTRUK 430 diaphragm spring clutch
Driving axle	HC16 SINOTRUK high strengthen cast steel driving axle ,
with two speed reductions	HC16 SINOTRUK high strengthen cast steel double reductions heavy duty driving axle
Ratio: 4.77
Front axle	HF9 off road use 9T front axle with drum brake system
Steering	ZF8118 German hydraulic steering with power assistance
Braking system	Service brake: dual circuit compressed air brake
Parking brake: spring energy, compressed air operating on rear wheels	3.5inches
Auxiliary brake: exhaust brake
Tire	12.00R20 radial tire
No.of Tires:10+1	1500/725
Wheel base mm	3225+1350
Front/ Rear wheel track mm	2022
1830/1830	10+1
Approach/departure angle	19 /26
Over hang mm	1500/1670
Maximum speed km/h	78
Numbers of axles	3
Van dimension mm	5400x2300x1500mm, 18CBM, hickness of the steel board: floor 8mm /side 6mm
Optional	Tha integral protection cover, mudguard, side air deflector etc
Whole dimension mm	7924X2496X3450
Colors	White/Red/Yellow/Green/Grey/Blue etc
Others	Will be carried out by SINOTRUK factory’s standard
