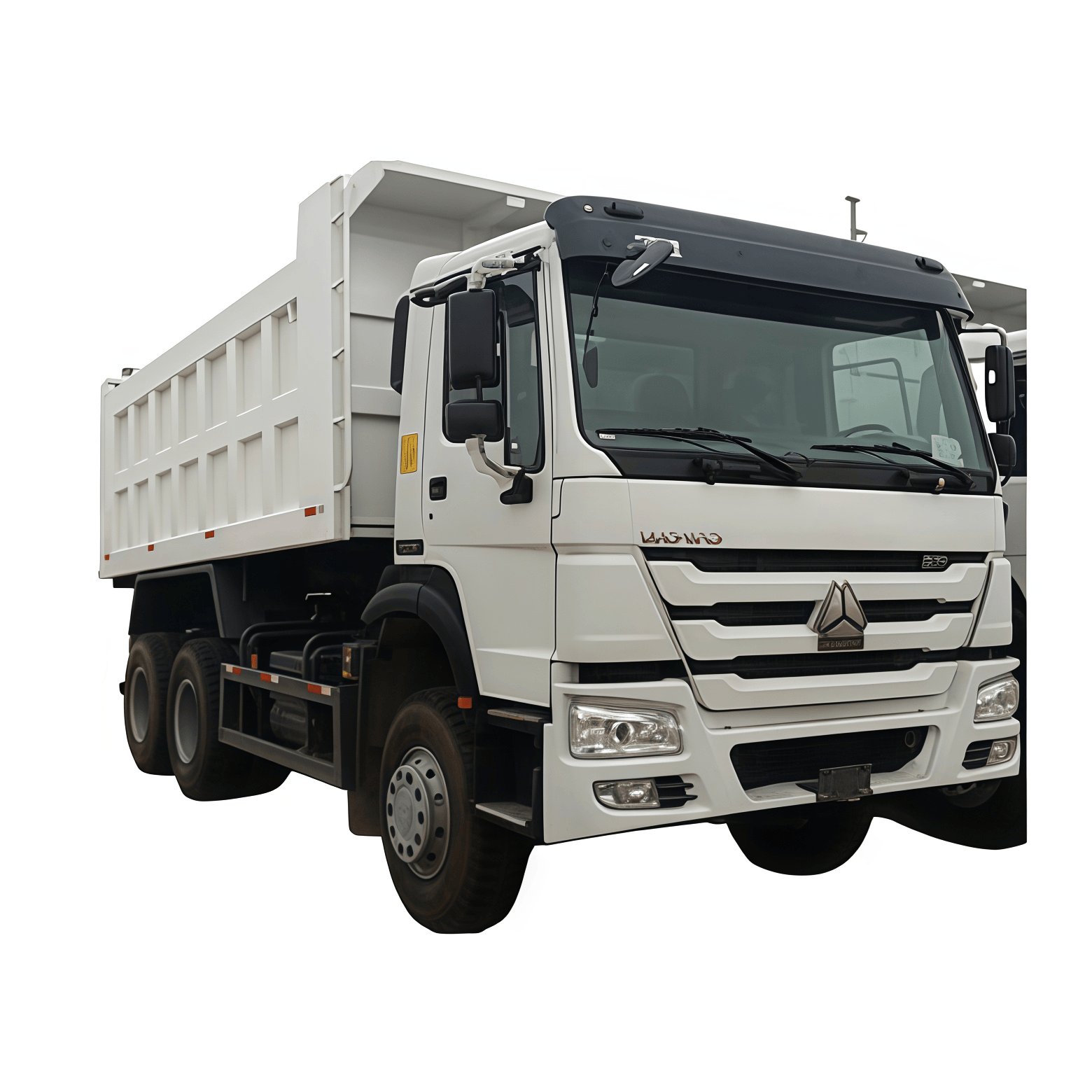

howo t7 dump truck

Product name : howo t7 dump truck
1 : Horse Power- 380hp
2 : Drive Model- 6x4
3 : Payload- 45t
4 : Cargo Box Size- 5400mmx2300mmx1500mm
5 : Tires- 12.00R20

Product Specification: howo t7 dump truck

Model	ZZ3317V466HD1B
Condition	New
Drive type	6×4
Steering Wheel Type	LHD(Left hand drive)
Fuel Type	Diesel
Engine	Type	SINOTRUK brand,WD615.47 EGR engine
	Emission standard	EURO II or euro 4
	Horse power	380/400/440hp
	Maximum output	273Kw @ 2200 rpm
	Displacement(L)	9.726/12L
Cabin	A7-W with two seats, and one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber
Steering	German ZF8118 hydraulic steering with power assistance
Transmission	Manual Type. HW19710 Sinotruk 10 Speed Transmission,10 forward and 2 reverse
Clutch	Ø430mm diaphragm spring clutch
Front axle	HF9(9 ton),rigid stubaxle with double T-cross section
Driving axle	[AC16] Heavy hub reduction drive axle
Rim/Tires	12.00R20 Radial tyre
Wheel base(mm)	3625+1350
Dimension of cargo body(mm)	L×W×H	5400×2300×1500
	Thickness of steel plate	Bottom: 8 Side: 6
	Capacity	18.63 CBM
Overall Dimension(mm)	8385×2496×3490
The total mass(Kg)	25000
Kerb weight(kg)	12300
Maximum speed (km/h)	78
Fuel tank	400L
Color	According to you

JINAN CHASING VEHICLE CO., LTD was established in 2004. It is a company inte-grating product research and development, production, trade, and mainly engaged in the manufacture of semi trailers, trailers, trailer accessories, and used truck sales.

The company covers an area of 150,000 square meters. It is a designated special vehicle manufacturer approved by the Ministry of Industry and Information Technology of China. It is also one of the earliest domestic companies to obtain
