howo a7 dump truck capacity

Product name : howo a7 dump truck capacity
1 : Horse Power- 420hp
2 : Drive Model- 6x4
3 : Payload- 45t
4 : Cargo Box Size- 5200mmx2300mmx1500mm
5 : Tires- 12.00R20

Product Specification: howo a7 dump truck capacity

1. Oil saving, safety, driving comfort, reliability, low application cost
2. Engine, Sinotruk engine, 420HP, German man technology
3. T-type, middle or front lifting type
4. Tipper body: square or U-shaped
5. Tipper body: 15 to 20cbm
6. Heavy-duty load capacity: 30 to 40 tons
7. Floor thickness: 4 to 8mm,Side wall thickness: 3 to 6mm for customers different use
8. Hydraulic system: HYVA brand or Chinese famous brand

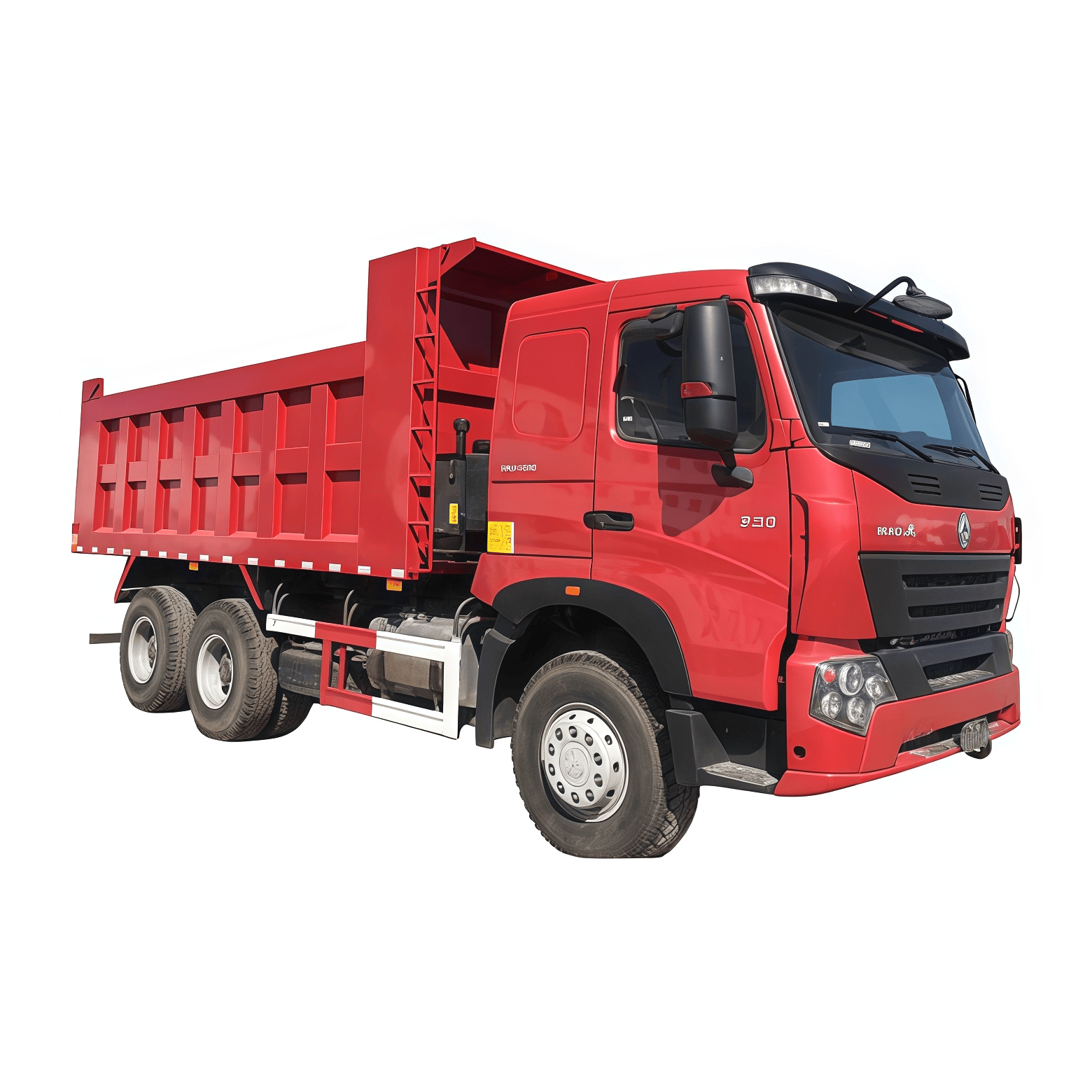

Item	SINOTRUK HOWO A7 dump truck with big capacity
Chassis model	ZZ3257N3047 New Truck
Color	Optional (Red, Black, Yellow, Green, White……)
Driving type	Left hand drive (LHD)
Engine	Make: SINOTRUK Engine model: D12.42-2,420hp, Euro II 6-cylinder in-line with water cooling, turbo-charging and intercooling. Displacement: 9.726 L
Cabin	A7-W, luxurious high-roof cab, with one sleeper (berth), air-conditioner, CAN+VDO numerical controlinstrument, MP5, safety belts, curtain, electrical window regulator, remote control key adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers, air suspension, etc.
Transmission	HW19710, 10 F and 2 R, manual. Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.
Front Axle	HR9, rated load 9000kg, disc brake.
Rear Axles	HC16, rated load 16000kgX2. Speed ration: 4.42
Wheelbase (mm)	1800+3800+1350
Front Suspension	1500
Rear Suspension	1860/2095
Steering	ZF8118, power steering with hydraulic system.
Braking System	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tire	12.00R20 radial steel tire, plus one spare tire (11 units)
Fuel tank	300L volume
Carriage Box (mm)	5200X2300X1200 (14.35M3) Floor thickness: 8mm, Side 6mm
Lifting System	Front Lifting 160 cylinder
Curb Weight (kg)	15200
Total Mass (kg)	31000
External dimension	8900x 2700x3200 mm
Towing Capacity	30T-40T

JINAN CHASING VEHICLE CO., LTD was established in 2004. It is a company inte-grating product research and development, production, trade, and mainly engaged in the manufacture of semi trailers, trailers, trailer accessories, and used truck sales.

The company covers an area of 150,000 square meters. It is a designated special vehicle manufacturer approved by the Ministry of Industry and Information Technology of China. It is also one of the earliest domestic companies to obtain
