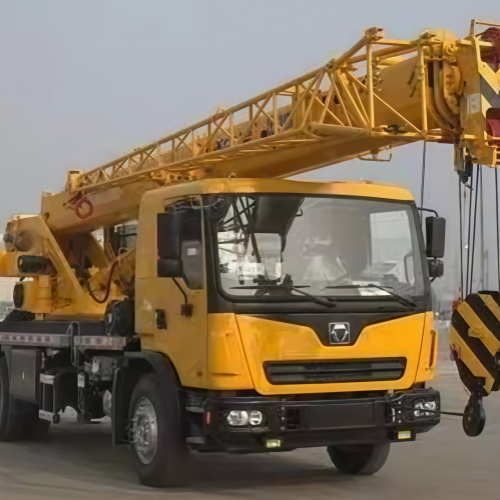

XCMG XCT12 Truck Crane

Product Feature

XCMG XCT12 12 ton new truck mounted crane for sale

Ultra-high performance

1. Machine optimization matching technology

The overall optimization design of the whole machine, the crane boom, turntable, and frame are fully optimized, and the whole machine and components are designed in coordination to make the layout more reasonable. Under the same vehicle weight, the lifting performance is 5~15% higher than similar products.

2. The world’s first, a new single-cylinder bolt telescopic system

Breaking the limitation of the five-section telescopic arm of 50-ton crane products, the 50-ton product is upgraded to a 6-section arm, and the arm length is extended to 50 meters.

3. Originally designed large-load single-arm independent suspension system

The left and right wheels move independently and adapt to the ground conditions. Compared with conventional integral axles, the vehicle’s handling performance during high-speed turns is improved by 15%. Taking the 100-ton all-terrain product equipped with this technology as an example, compared with conventional products, the maximum ground clearance is increased from the original 300mm to 500mm, and the comprehensive off-road capability of the product is improved by more than 20% compared with conventional products.

4. Newly developed single-engine power technology for large-tonnage cranes

Breaking through the traditional hydraulic power transmission method, the chassis power is transmitted to the upper vehicle through a mechanical transmission shaft. The whole machine uses only one engine system, and the weight of the upper vehicle power part is optimized and distributed to the operating structure. The layout of the whole machine is more reasonable. Compared with conventional dual-power system products, the lifting performance is improved by 15%; only one engine system of the chassis needs to be maintained, and the annual maintenance cost is saved by more than 40%.

5. Dual-power drive driving technology

When heavy-load transfer, the upper vehicle engine power is introduced into the lower vehicle, and matched with the special hydraulic reducer independently developed by XCMG. Its output torque is 3 times higher than that of the traditional dual-power method, especially in the heavy-load transfer condition of super-large tonnage products in wind power, the climbing ability is increased from the original 20% to more than 30%, which greatly improves the heavy-load transfer capability of the product.

Quality and efficiency

1. New exterior design and humanized design

The unique honeycomb design concept makes solidity, finishing and visual beauty complement each other, making it stronger, more dynamic and more sophisticated.

2. The world’s first human-machine interaction system

The industry’s first human-machine interaction system that reaches the level of a car, enabling friendly dialogue between the operator and the vehicle. Easily control various status information of vehicle driving and lifting operations, making operation easier and more convenient.

3. Efficient self-disassembly and assembly transition design

The efficient self-disassembly and assembly transition design can realize self-disassembly and assembly of the system without auxiliary vehicles, greatly saving personnel and auxiliary transportation costs. The transition time is reduced by at least 20%.

Technology and intelligence

1. Intelligent boom technology

(1) Lifting amplitude compensation control technology

When raising and lowering the hook, the amplitude change caused by the deformation of the boom is compensated, and the heavy object is lifted vertically, making the lifting safer.

(2) Winch follow-up control technology

During the process of changing the amplitude and extending the telescope, the system automatically controls the retraction and extension of the winch, saving more than 40% of the operation time, reducing the difficulty of operation, and achieving efficient and reliable operation.

2. The world’s first three-dimensional lifting solution intelligent planning system

● Automatic working condition planning

Just input the lifting weight, starting and ending amplitude, and height information into the display, and the system will automatically recommend feasible working conditions to reduce the risk of human error.

● Provide users with a one-stop, safest, most economical, and most efficient lifting solution.

3. Driving intelligent control system

(1) Multi-mode drive technology

The industry’s first multi-mode drive technology realizes real-time intelligent control of different road conditions, optimizes the driving state of the whole vehicle, and improves the safety and reliability of the whole vehicle.

(2) Axle load monitoring technology

Dynamically calculate the axle load and the center of gravity position of the vehicle, and automatically match the corresponding highest gear and axle drive mode in real time.

(3) Driving Assistant

Provide operation improvement suggestions to the driver to ensure the long-term reliable use and safe and stable driving of crane products.

Green Energy Saving

1. Low-speed and high-torque power transmission system

The comprehensive fuel consumption is reduced by more than 12%, and the climbing ability is improved to 45%.

Product Parameters
