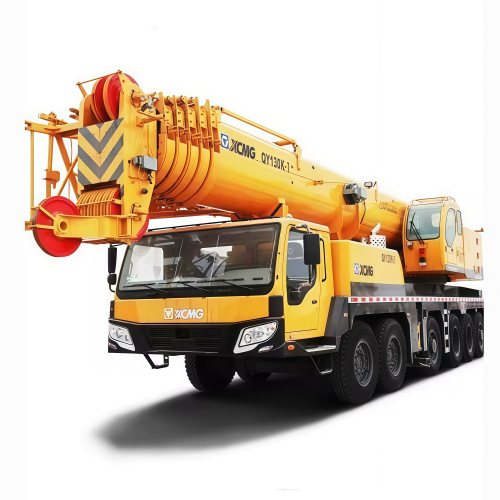

XCMG QY130K-I Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: QY130K-I
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

XCMG 130 ton mobile truck crane machine QY130K-I.
XCMG truck crane QY130K-I is positioned for the installation and maintenance of large petrochemical projects. XCMG truck crane QY130K-I adopts a 6-axle automobile special chassis with two-stage outrigger structure; precise multi-axle steering and emergency braking technology integrating mechanical, electrical, and hydraulic, and superior driving performance.
Performance Characteristics:

Integrated mode of auxiliary brake for truck crane, extending the service life of brake.
Multi-axle vehicle leaf spring balance suspension technology to improve vehicle driving performance.
Optimize the electrical control form to solve the system reliability problem.
Added emergency steering system to improve driving safety.
Structural optimization technology improves performance by 5%.

Product Parameters

Item			Unit	QY130K-I
Outline dimension	Overall length		mm	14980
	Overall width		mm	3000
	Overall height		mm	3950
Mass	Total mass in travel state		kg	54900
	Axle load	Axle 1, Axle 2	kg	7500/7500
		Axle 3, Axle 4	kg	8300/12000
		Axle 5, Axle 6	kg	12000/7600
Power	Crane superstructure engine	Rated power	kw/(r/min)	162/2100
		Rated torque	N.m/(r/min)	1054/1500
	Crane carrier engine	Rated power	kw/(r/min)	390/1800
		Rated torque	N.m/(r/min)	2400/1080
Travel	Max. travel speed		km/h	80
	Min. turning diameter		m	25
	Min. ground clearance		mm	301
	Approach angle		°	20
	Departure angle		°	14
	Max. grade ability		%	40
	Fuel consumption for 100km		L	80
Lifting performance	Max. rated total lifting capacity		t	130
	Min. rated working radius		m	3
	Turning radius at turntable tail		m	4.6
	Max. lifting torque		kN.m	4998
Working speed	Max.slewing speed		r/min	1.8
	Main winch with no load(single line)		m/min	115
	Auxiliary winch with no load(single line)		m/min	115
