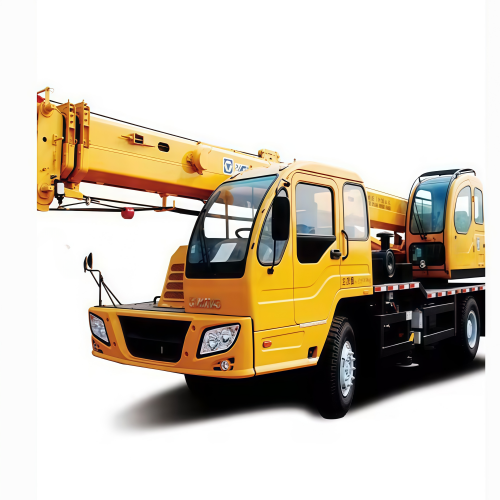

XCMG QY12B.5I Truck Crane

Product Category: Truck Crane
Brand: XCMG
Model: QY12B.5I
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

Official QY12B.5I xcmg wireless crane remote control mobile crane load chart with boom

QAY12B.5i is the truck crane with the largest tonnage in the world. The boom length and lifting capacity is a great breakthrough in the 6axle truck crane. The full extension length of the boom is 62m, and can be equipped with 28m vice boom. The maximum counterweight is 50t. The outrigger span is 7.8×8.0m, which can realize 360°full turn with the same lifting capacity, featuring large working scope and strong lifting capacity. The maximum travel speed is 80km/h, and the maximum grade ability is 40%, having excellent travel performance.

Product Parameters

Item			Unit
Dimensions	Overall length	10860	mm
	Overall width	2500	mm
	Overall height	3130	mm
Weight	Dead weight in travel state	16000	kg
	Front axle load	6000	kg
	Rear axle load	10000	kg
Power	Engine model
	Engine rated output	147/2500 170/2200	Kw(r/min)
	Engine rated torque	730/1200~1500 830/1400	N.m(r/min)
Travel	Max.trave speed	80 75	km/h
	Min.turning diameter	18	m
	Min.ground clearance	270	mm
	Approach angle	20	°
	Departure angle	12	°
	Max.gradeability	≥41/≥35	%
	Fuel consumption of 100km	35	L
Lifting performance	Max.total rated lifting load	12	t
	Min.rated working radius	3	m
	Turning radius at swing tadble tail	2620	mm
	Base boom max.load moment	470.4	kN.m
	Base boom	9.2	m
	Full-extend boom	29.5	m
	Boom+Jib	29.5+7	m
	Outrigger longitudinal distance span	4.25	m
	Outrigger lateral distance span	5.2	m
Working speed	Boom elevating time	50	s
	Boom telescoping time	80	s
	Max.slewing speed	2.6	r/min
	Winch speed(single line)	110	m/min
