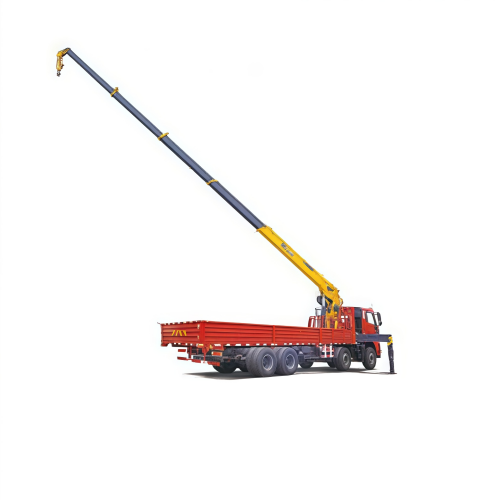

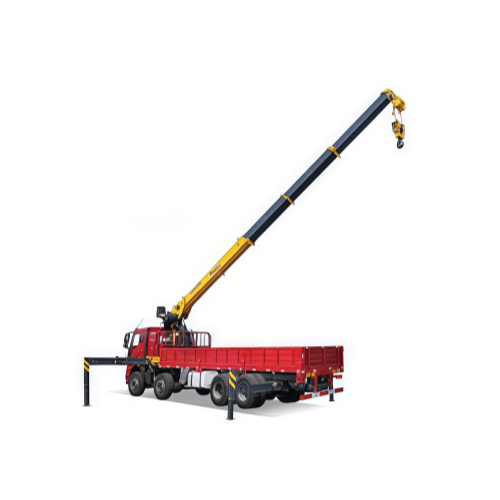

XCMG GSQS200-4 Loader Crane

Product Category: Loader Crane
Brand: XCMG
Model: GSQS200-4
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

Comprehensive optimization of hydraulic system make workefficiency and energy consumption more lower.
Single cylinder synchronous telescoping organization isupgraded comprehensively with higher reliability.
Boom length creates the new record ofindustry.
Automatic hook – in technology, save operationtime and inventory space, maximize user value.

Product Parameters

Item	Unit	Parameter
Max.Lifting Capacity	kg.m	20000
Max. Working Height	m	16.7
Max. Working Radius	m	14.5
Rated Load	kg/m	8000/2.5 ,4000/4.97,2100/8.15,1300/11.3,900/14.5
Rated Oil Flow Volume	L/min	63
Oil Pressure	kg/c㎡	260
Oil Tank Gapacity	L	200L
Boom Type /Sections	–	4
Boom Extending Speed	m/s	9.53/27
Boom Undulation Speed	deg/s	0-75/21
Wire Rope Winch Speed
Swing Angle	–	360°
Swing Speed	rpm	1.7
