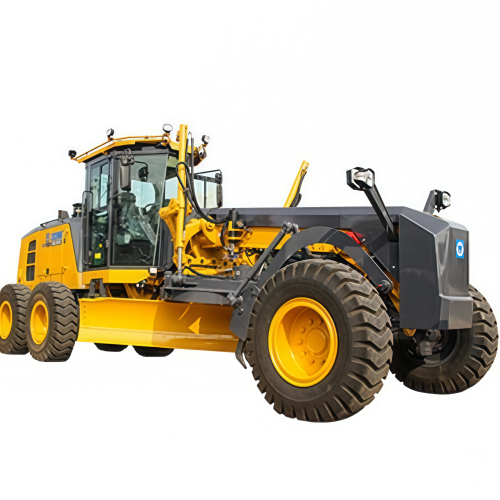

XCMG GR2405T Motor Grader

Product Category: Motor Grader
Brand: XCMG
Model: GR2405T
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc., also can be used in heavy duty areas. It is the necessary construction machinery for national defense construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

Product Parameters

Item			GR2405T
Basic parameters	Engine model		QSB6.7
	Rated power/speed		178kW/2200rpm
	Overall dimension (standard)		9300x2625x3420mm
	Total weight (standard)		17000 kg
	Tire specification		17.5-25
	Ground clearance (front axle)		586mm
	Space of front and rear axles		6447mm
	Space of middle and rear wheels		1538 mm
Performance parameters	Forward velocity		5,8,11,19,23,38KM/h
	Reverse speed		5/11/23km/h
	Tractive effort f=0.75		82 kN
	Maximum gradeability		25%
	Tire inflation pressure		260kPa
	Working system pressure		22MPa
	Transmission pressure		1.85-2.2Mpa
Working parameters	Maximum steering angle of front wheel		±48°
	Maximum slant angle of front wheel		±17°
	Maximum oscillating angle of front axle		±15°
	Maximum oscillating angle of equilibrium box		forwards15°,Reverse15°
	Maximum steering angle of frame		±25°
	Minimum turning radius		7.3m
	Scrape knife	Maximum lift height	480mm
		Maximum cutting depth	715mm
		Maximum tilt angle	90°
		Cutting angle	29°-69°
		Angle of revolution	360°
		Length & chord height	3965x610mm
Oil filling amount	Coolant		50L
	Fuel tank		270L
	Engine		24L
	Transmission		38L
	Balancing box		60L
	Drive axle		36L
	Hydraulic oil		190L
