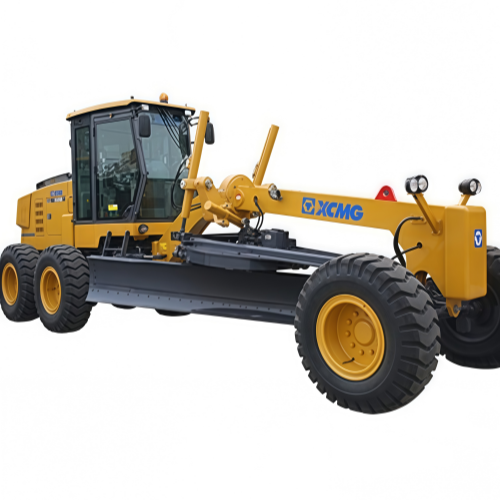

XCMG GR2003 Motor Grader

Product Category: Motor Grader
Brand: XCMG
Model: GR2003
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas

Product Feature

The GR2003 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

Product Parameters

Item			GR2003
Basic parameters	Engine model		SC9DK200.1G3
	Rated power/speed		147kW/2200rpm
	Overall dimension (standard)		8900x2625x3420mm
	Total weight (standard)		16000 kg
	Tire specification		17.5-25
	Ground clearance (front axle)		430mm
	Tread		2156mm
	Space of front and rear axles		6219 mm
	Space of middle and rear wheels		1538 mm
Performance parameters	Forward velocity		5/8/11/19/23/38km/h
	Reverse speed		5/11/23km/h
	Tractive effort f=0.75		82 kN
	Maximum gradeability		25%
	Tire inflation pressure		260kPa
	Working system pressure		20MPa
	Transmission pressure		1.3-1.8Mpa
Working parameters	Maximum steering angle of front wheel		±48°
	Maximum slant angle of front wheel		±17°
	Maximum oscillating angle of front axle		±15°
	Maximum oscillating angle of equilibrium box		±15°
	Maximum steering angle of frame		±27°
	Minimum turning radius		7.3m
	Scrape knife	Maximum lift height	400mm
		Maximum cutting depth	500mm
		Maximum tilt angle	90°
		Cutting angle	28°-70°
		Angle of revolution	360°
		Length & chord height	4270x610mm
Oil filling amount	Coolant		50L
	Fuel tank		280L
	Engine		24L
	Transmission		38L
	Balancing box		46L
	Drive axle		28L
