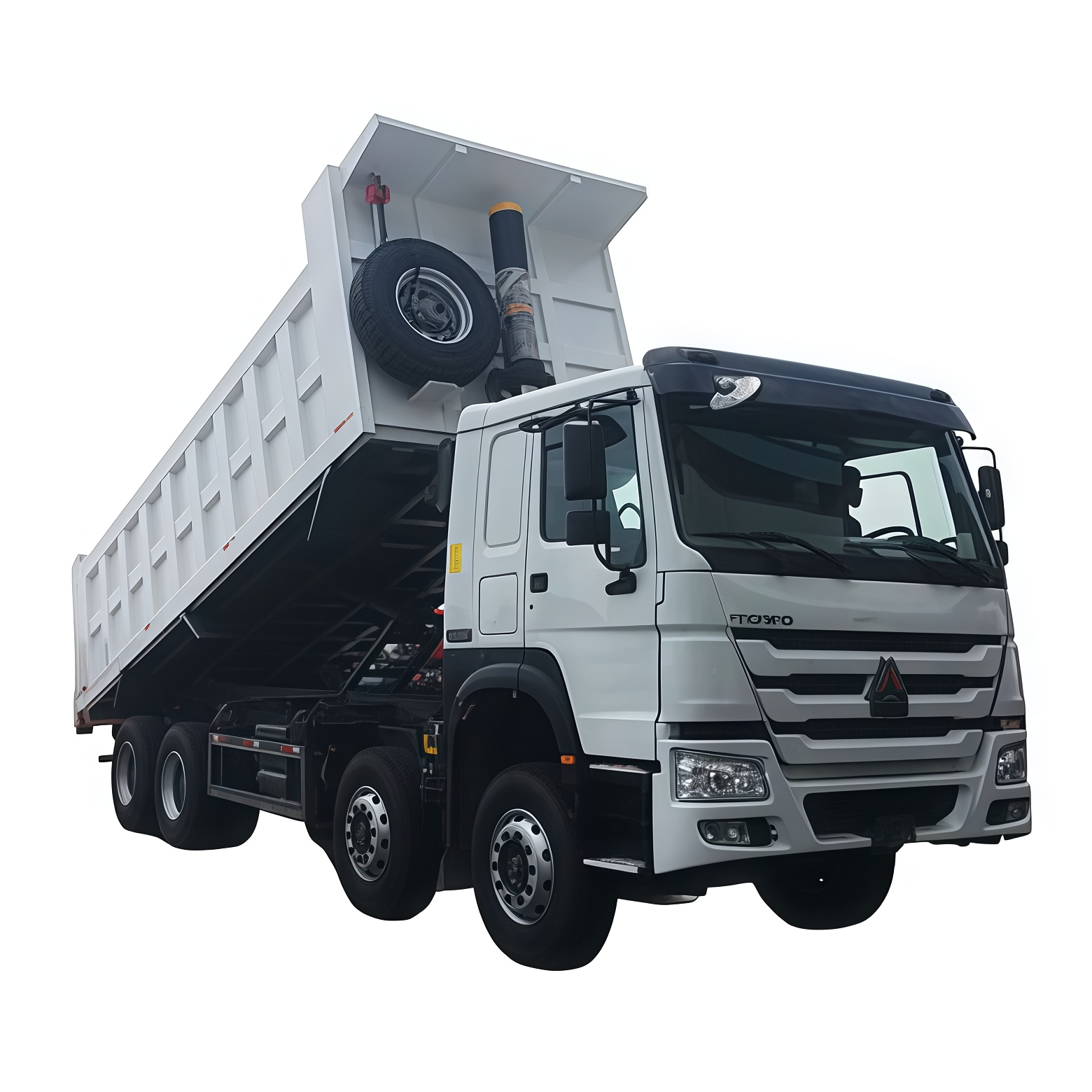

Sinotruk Howo 8x4 371 12 Wheel Sino Dump Truck

Truck Brand

SINOTRUK –HOWO

Driving Type

RHD or LHD

Dimension(Lx W xH)(unloaded)(mm)

11050x2496x3450

Cargo body size (L*W*H, mm)

8000x2300x1500,

Cargo body thickness(mm)

bottom:8mm, side:4mm

Lift type of Carriage

Front Lift

Approaching angle/Departure angle(°)

19/19

Overhang(front/rear) (mm)

1500/2200

Wheel base (mm)

1800+4200+1350

Max speed(km/h)

75

Curb weight(kg)

15440

Total weight(kg)

40000   27.6m3

Fuel tanker capacity(L)

300L or 600L

Fuel consumption(L/km)

20-40 L/100 km

Clutch

Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

Fuel type

Diesel

Horse Power, max(kw/rpm)

371HP

Emission

EURO II

Model

WD615.47. water-cooled,four strokes,6 cylinders in line with water cooling,directly injection

Transmission

Model

HW19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

hydraulic steering with power assistance

Front axle

HF9, Steering with double T-cross section beam

Loading capacity: 9000kg

Rear axle

HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels

Loading capacity:13000kg
Ratio:3.93/4.42/4.80/5.73

Color

Optional

Tire

12.00R20

Tire quantity

12+1 spare=13 tires

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab, one sleeper with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
