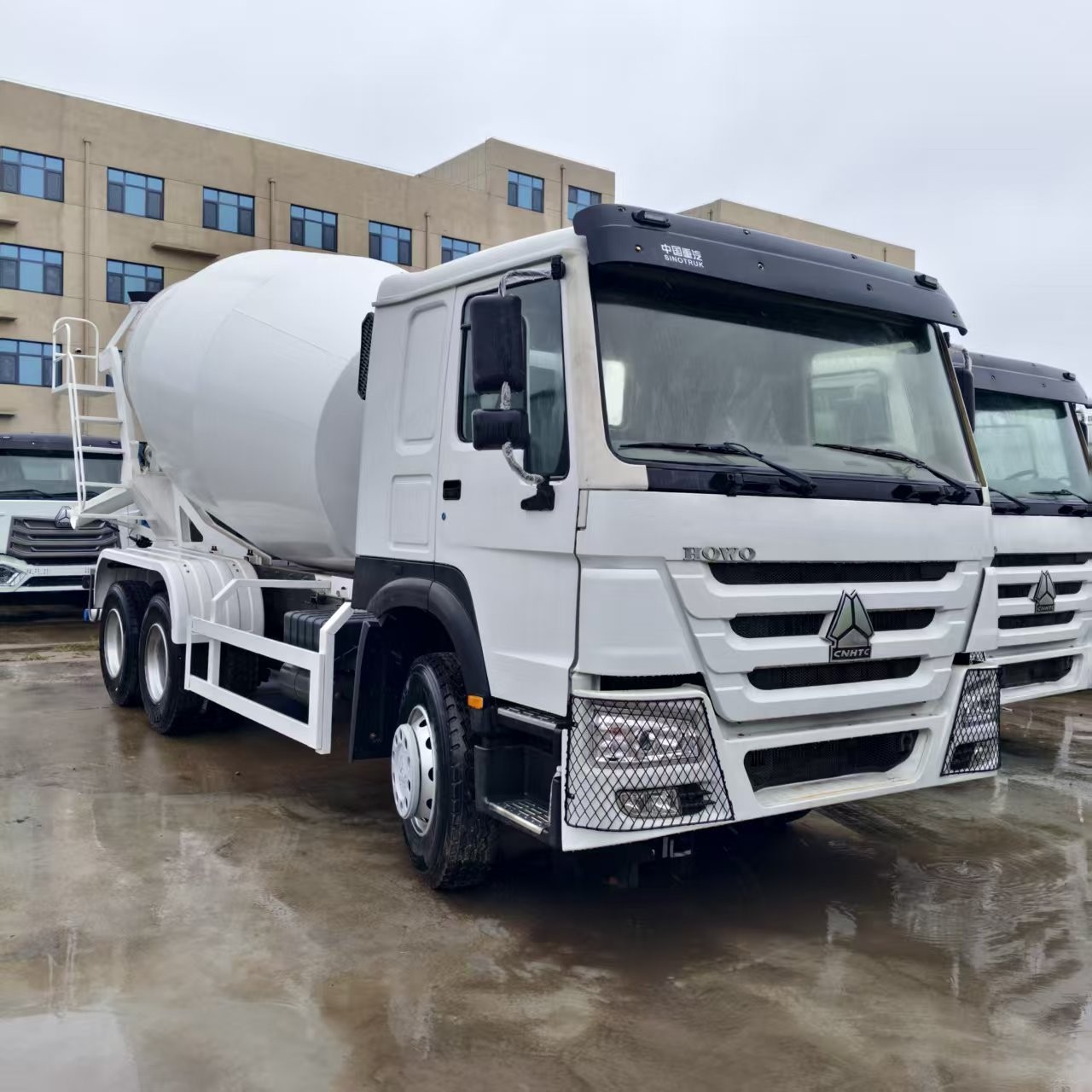

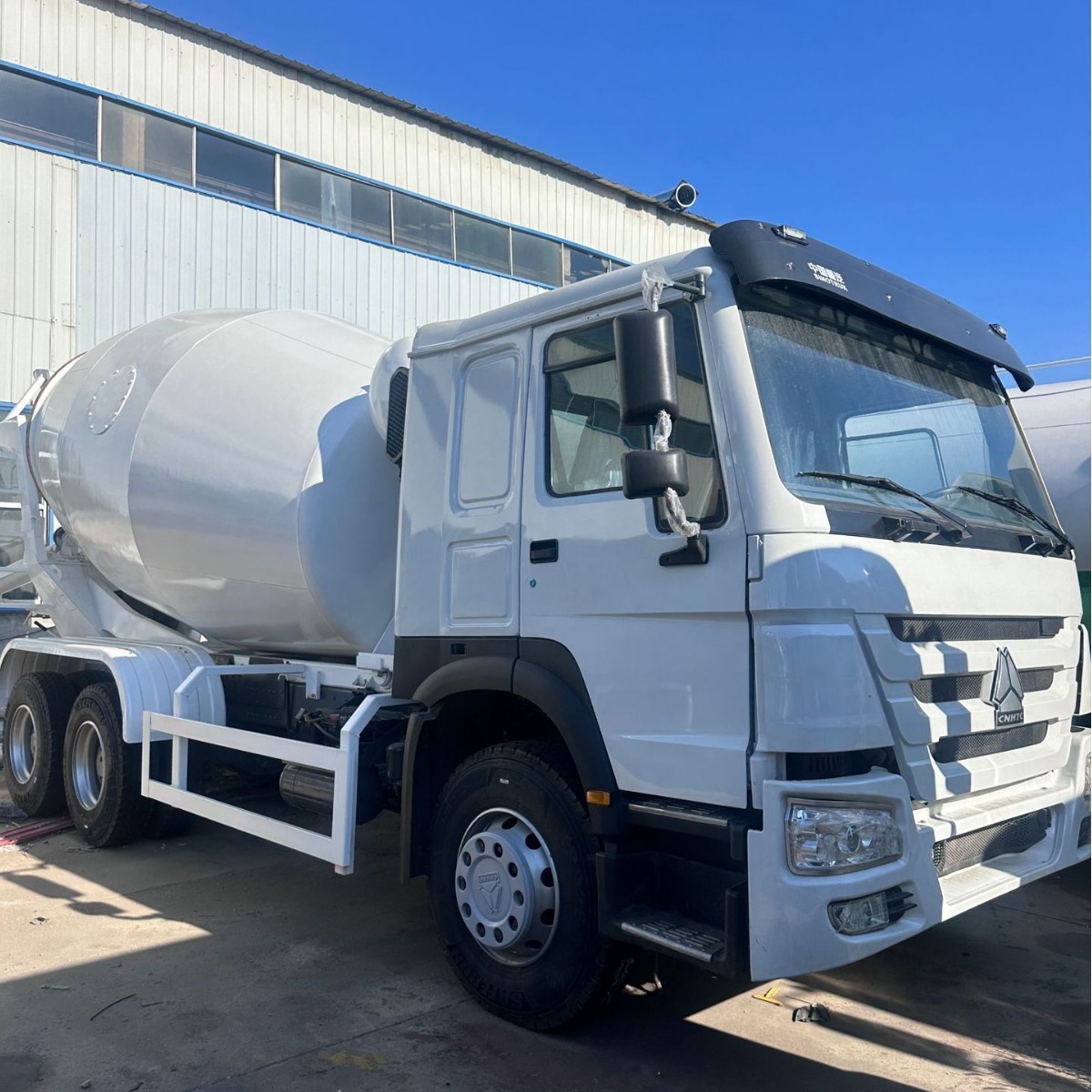

SINOTRUK howo transit mixer truck

Chassis model

ZZ1257N3241

Production year

2023 new truck

Cabin

HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. Engine Make: SINOTRUK Diesel 4-stroke direct injection diesel engine

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model:WD615.69, Euro 2, 336 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L

Transmission

HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Front axle

HF9, 1x9000 KGS Steering with double T-cross section beam

Rear axle

HC16, 2x16000 KGS

 Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

 Ratio:5.73

Propeller shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm+8, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:15 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brak

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Fuel tank

 300L

Tire

12.00R20, radial tire 10+1

Color

Yellow

Drum body

 thickness: 5mm, End cover thickness:6mm

Overall dimension

8375*2496*3950mm
