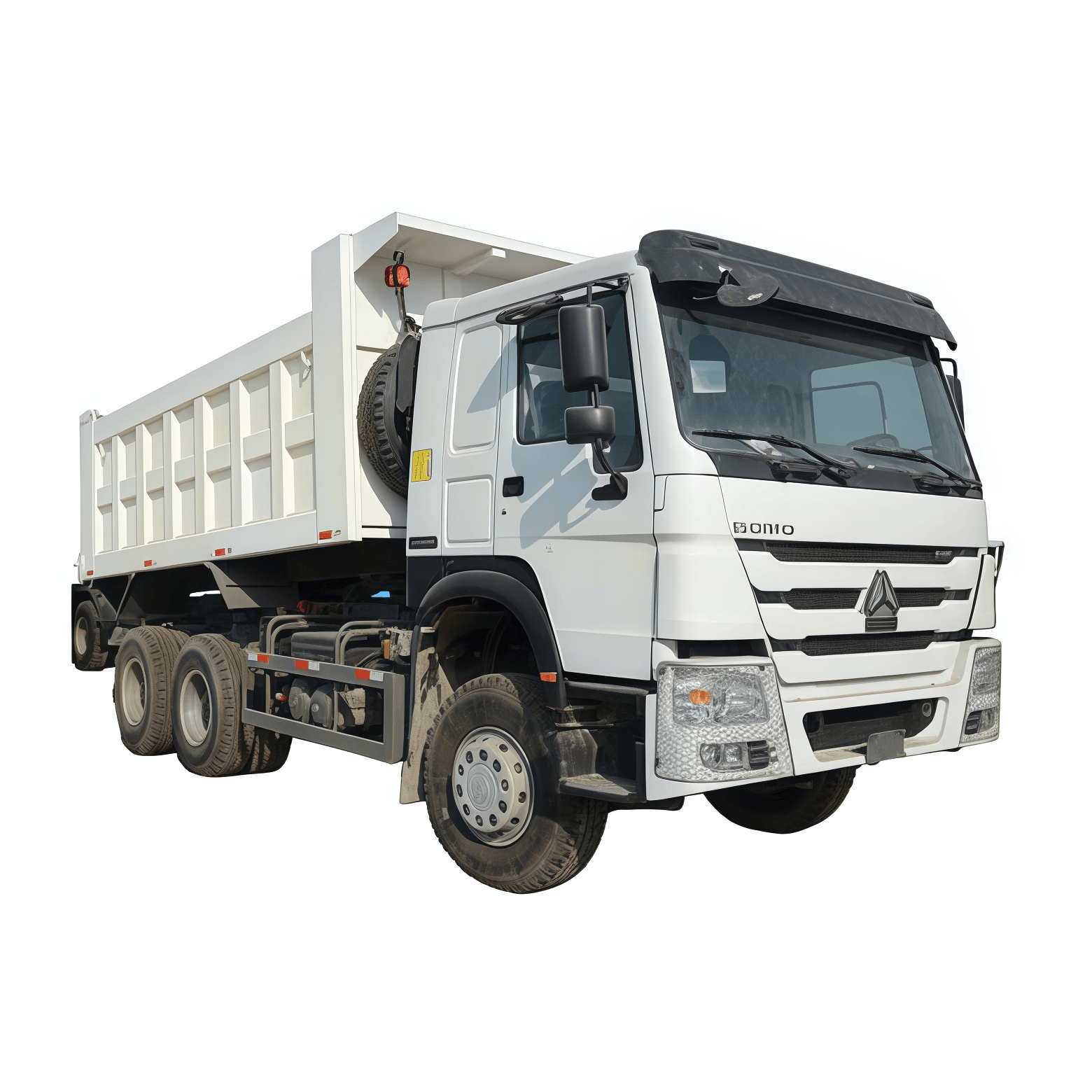

Howo 6x4 20 Cubic Meter 10 Wheel Tipper Truck
Product name : Howo 6x4 20 Cubic Meter 10 Wheel Tipper Truck
1 : Horse Power- 336hp
2 : Drive Model-6x4
3 : Payload-35t
4 : Cargo Box Size-6000mmx2300mmx1400mm
5 : Tires- 12.00R20
Product Specification: Howo 6x4 20 Cubic Meter 10 Wheel Tipper Truck
| Truck Model | 6x4 dump truck | ||
| Truck Brand | SINOTRUK -HOWO | ||
| Dimension(Lx W xH) | 9185x2496x3386 | ||
| Cargo body size (L*W*H, mm) | 6000x2300x1400 | ||
| Cargo body thickness(mm) | bottom:8mm, side:6mm, | ||
| Lift type of Carriage | Front lifting | ||
| Approaching angle/Departure angle(°) | 19/26 | ||
| Overhang(front/rear) (mm) | 1500/1739 | ||
| Wheel base (mm) | 4325+1350 | ||
| Max speed(km/h) | 75 | ||
| Curb weight(kg) | 12290 | ||
| Loading Weight(kg) | 25000 | ||
| Fuel Tanker | 300L with locking fuel cap | ||
| Fuel consumption(L/100km) | 32 | ||
| Clutch | Single-plate dry clutch Φ420mm | ||
| Engine | Model | WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , | |
| Horse Power, | 336HP | ||
| Emission Standard | EURO II | ||
| Transmission | Model | HW 19710,10 forwards and 2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake | Engine exhaust brake | ||
| Steering system | Model | ZF8098 hydraulic steering with power assistance | |
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| Tire | 12.00R20 | ||
| Electrical system | Operating voltage | 24V,negative grounded | |
| Starter | 24V,7.35KW | ||
| Alternator | 28V,1500W | ||
| Batteries | 2*12V.165Ah | ||
