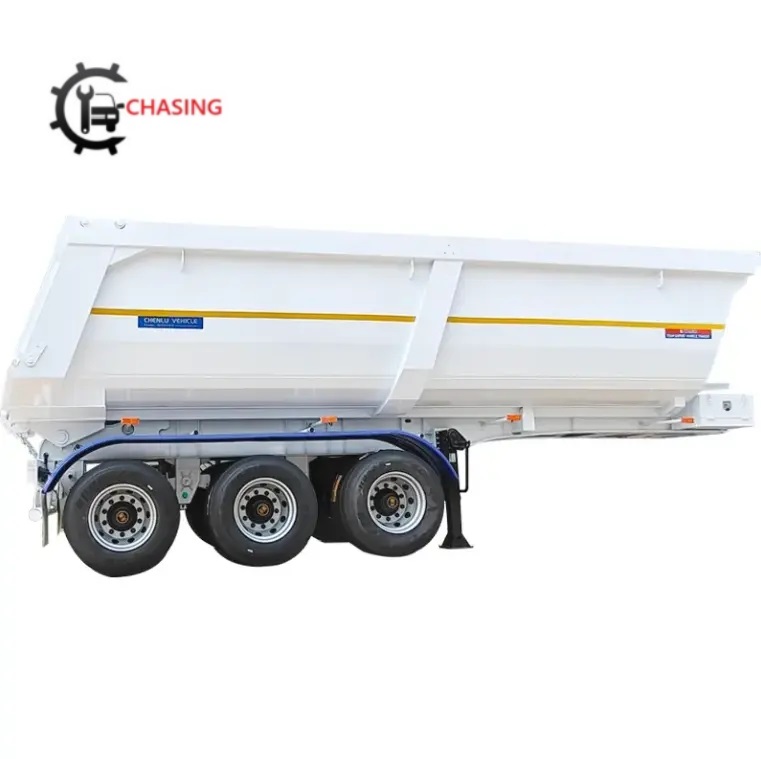

3 Axles Hydraulic Semi Truck Rear Dump Trailer

About 3 Axles Hydraulic  Semi Truck Rear  Dump Trailer

Total weight：15600KG

Dimension：11280*2495*3970mm outside

10500*2300*1700 work space

Color： Customized

Axle： 2/3/4 axle FUWA/BPW/Others brand optional 13T-16T

Side wall thickness： 3-6mm Q235 steel

Bottom plate thickness： 5-8mm Q235 steel

Lifting system： Full set of HYVA (FC214-5-07130) Hydraulic Lifting Cylinder

Tire： 11.00R20/12.00R20/11R22.5/12R22.5 optional

Main beams： Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic Submerged-Arc processes.

Upper plate:16mm; middle plate: 8mm; bottom plate: 18mm

Height: 500mm, material Q345B steel

Wheel rim： 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional

Suspension： Mechanical suspension or air suspension

Leaf spring： 10 pcs*90*13mm

Floor： 8mm plate side wall 6mm

Kingpin： JOST 2”/3.5” bolt-in king pin

Landing gear： JOST two-speed, manual operating, heavy duty landing gear

Cylinder： HYVA

Braking system： WABCO RE6 relay valve, T30/30 spring brake chamber; 40L air tanks

ABS： optional

Painting： Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories One standard tool box,

Delivery detail： By bulk cargo or ro-ro, the trailer size can be customized, the tractor truck can choose 6*4 model
